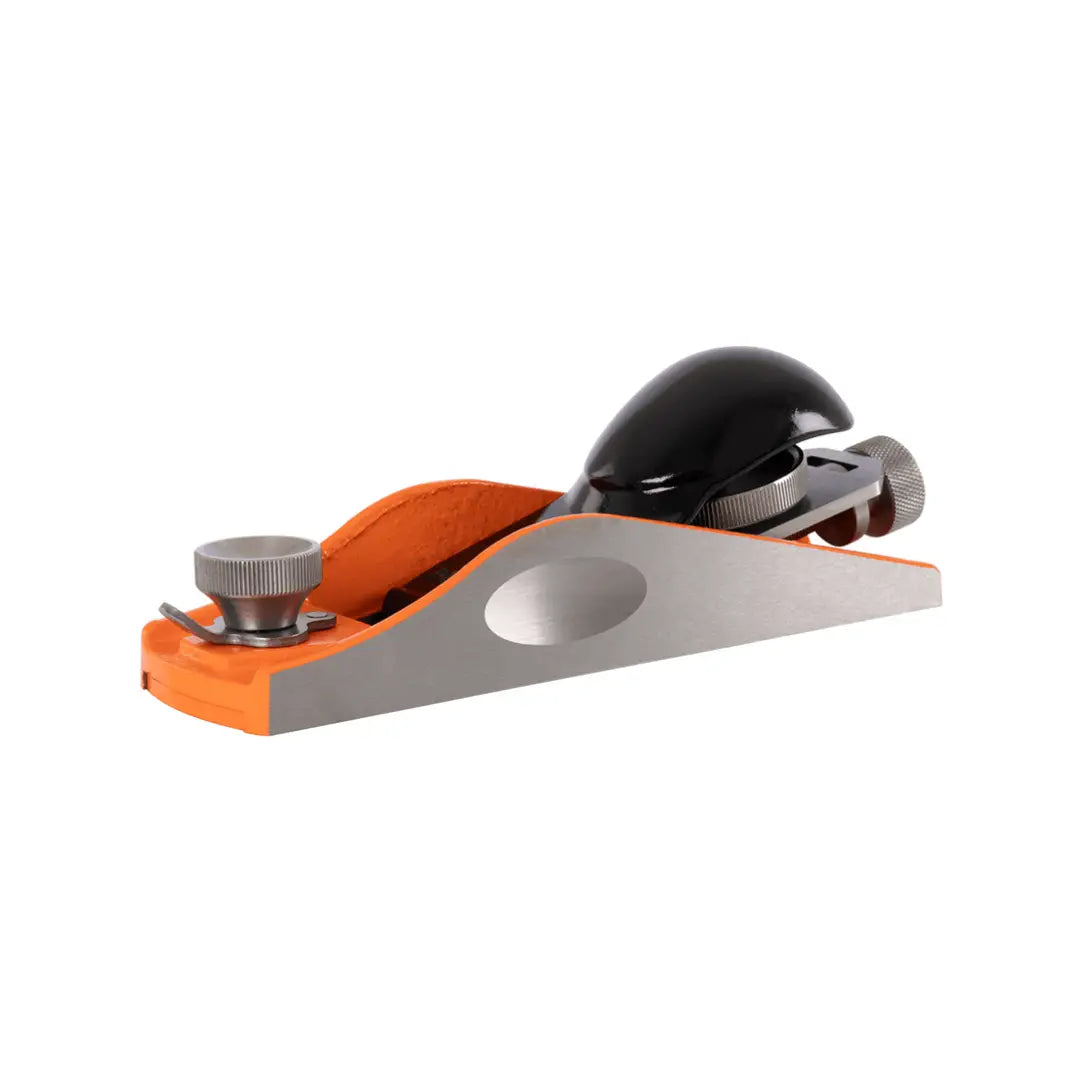

Jorgensen No.60-1/2 Low Angle Block Plane – Model 70710 – This plane from Jorgensen is designed to be the most versatile and precise tool in your workshop. With its low angle and adjustable mouth, it is ideal for smoothing end grain and performing precise finishing touches that require superior one-handed control.
Professional Features & Benefits:
-
Low Angle for High Performance: The blade is set at a 12-degree angle, making it perfect for cutting end grain and providing an extremely smooth cut on hardwoods.
-
Heavy Pro O1 Blade (3.0 mm): The blade is made of 3mm thick O1 steel, minimizing chatter and ensuring amazing stability during cutting.
-
Adjustable Mouth: The adjustable mouth feature allows you to control the thickness of the shavings, enabling transitions from rough cutting to ultra-fine finishing.
-
Ductile Iron Body: The body is made of impact-resistant ductile cast iron, with a precisely ground sole and sides to ensure smooth gliding over wood.
-
Stress-Relieved Metal: The metal has undergone heat treatment to ensure the sole remains perfectly flat and is not affected by atmospheric changes or working pressures over time.
Technical Specifications for Model 70710:
-
Model Number: 70710.
-
Type: No.60-1/2 Low Angle Block Plane.
-
Blade Angle: 12 degrees.
-
Blade Thickness: 3.0 mm O1 steel.
-
Body Material: Ductile Iron.
Ideal Uses:
-
End Grain Smoothing: Thanks to its low angle, it cuts fibers instead of tearing them.
-
Precise Finishing Touches: Ideal for cleaning drawer edges, doors, or creating small chamfers.
Technical Tip: For impressive performance, ensure the mouth is closed when performing final smoothing to reduce tear-out. When assembling delicate pieces, use Bison glue to ensure durability that matches the precision of your work.
