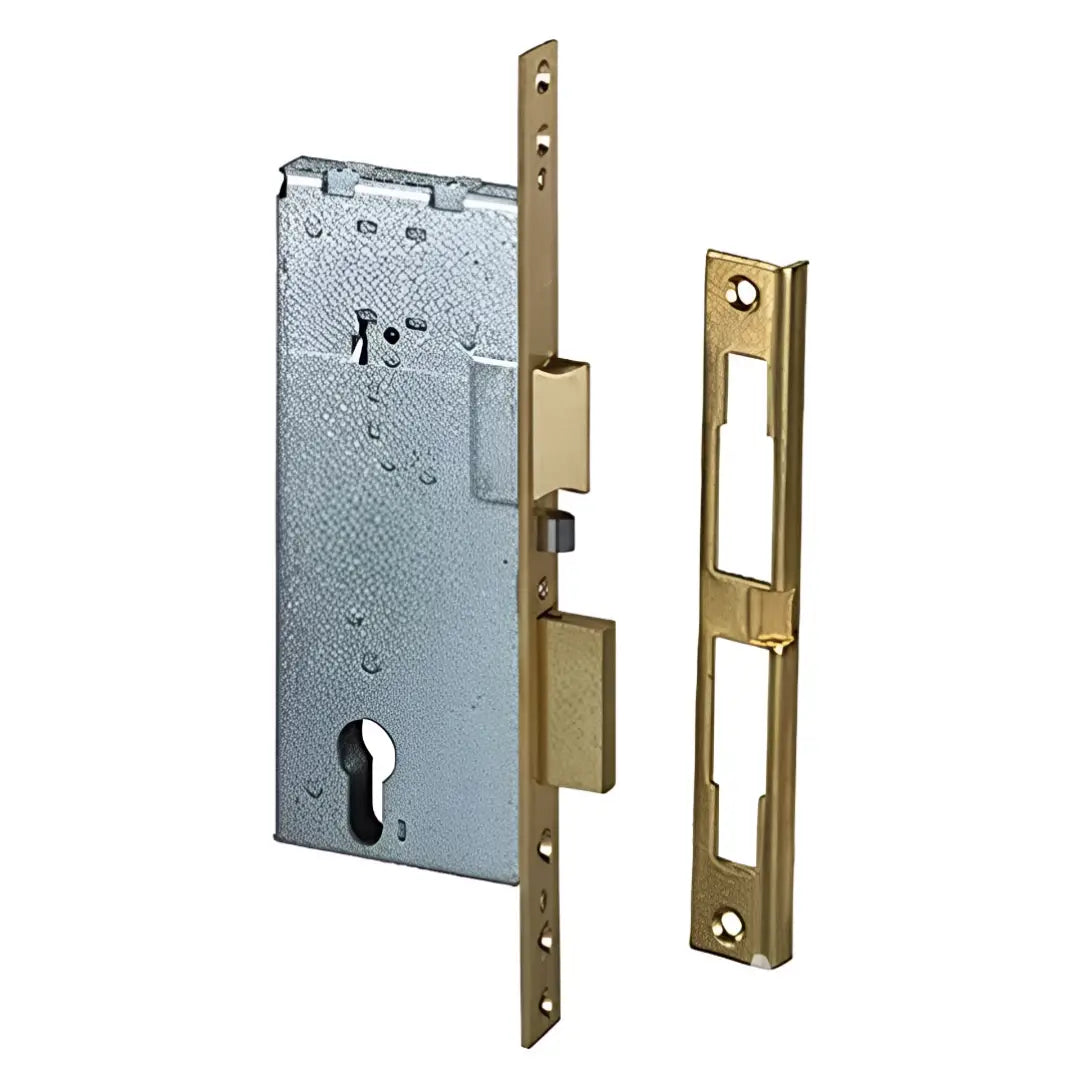

Electric Door Lock (Zarfeel) – Model 12011 (Automatic) – An advanced technical solution combining high security with electric operation. This model features an automatic latch and bolt system, ensuring a tight and automatic closing of the door once it is shut, with the added capability of remote opening.
Key Features:
-
Fully Automatic System: Equipped with an automatic latch and bolt that secure the door immediately upon closing.
-
Certified Security: Complies with European specifications (Grade 3 Security) according to EN 12209, providing enhanced protection against intrusion attempts.
-
Durable Construction: The lock case is made of galvanized steel with a satin-plated brass faceplate and strike plate.
-
Reversible Handing: Features a reversible electric latch to accommodate different door opening directions.
-
Electric Release: The lock can be opened electrically with 12V, even when the bolt is engaged.
Technical and Electrical Specifications:
-
Power Supply: Operates on 12V AC.
-
Power Requirements: A transformer with a minimum power of 15 watts must be used.
-
Current and Resistance: Rated current of 3.1A, and resistance of 3 ohms at DC.
-
Backset Options: Available in 40, 50, 60, and 70 mm sizes to suit various door types.
Included Components:
- Electrical contact connectors.
- Strike plate.
- Screws for lock and cylinder mounting.
- Technical instruction manual.
Technical Alert: Electrical connections must be made using standard cables with a minimum diameter of 1 mm, and ensure that the power supply is disconnected during installation for safety.
