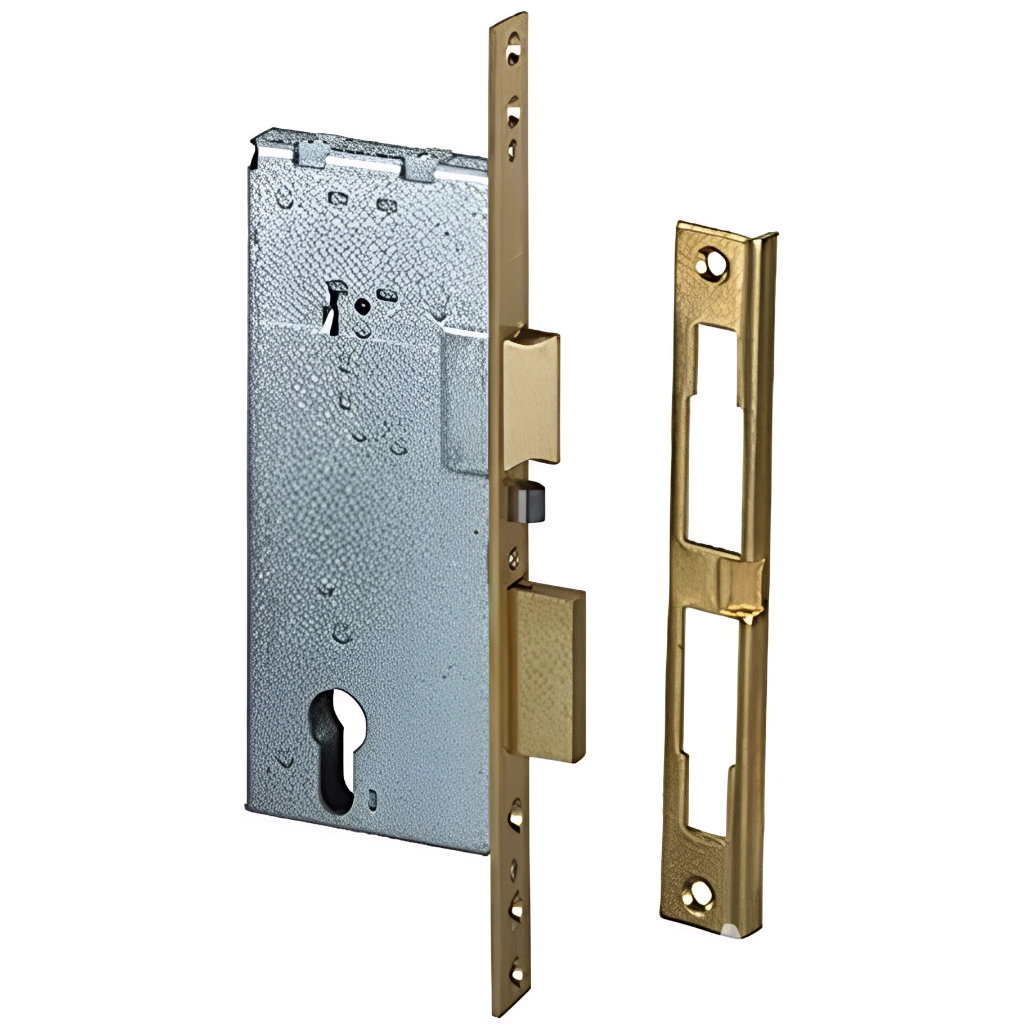

Electric Door Lock – Model 12011 (Automatic) – An advanced technical solution combining high security and electric operation. This model features an automatic latch and deadbolt system, ensuring a tight and automatic closing of the door once shut, with the option for remote opening.
Key Features:
-
Fully Automatic System: Equipped with a latch and deadbolt that operate automatically to secure the door upon closing.
-
Certified Security: Compliant with European specifications (Grade 3 Security) according to standard EN 12209, providing enhanced protection against intrusion attempts.
-
Durable Construction: The lock case is made of galvanized steel with a satin-plated brass faceplate and strike plate.
-
Reversible: Features a reversible electric latch to suit different door opening directions.
-
Electric Release: The lock can be opened electrically with 12V even when the deadbolt is engaged.
Technical and Electrical Specifications:
-
Power Supply: Operates on 12V AC.
-
Power Requirements: A transformer with a minimum power of 15 watts must be used.
-
Current and Resistance: Rated current of 3.1 Amps, and resistance of 3 Ohms at DC.
-
Backset Options: Available in sizes 40, 50, 60, and 70 mm to suit various door types.
Included Components:
- Electrical contact connections.
- Strike plate.
- Mounting screws for the lock and cylinder.
- Technical instruction manual.
Technical Note: Electrical connections must be made using standard cables with a diameter of at least 1 mm, and ensure the power supply is disconnected during installation to guarantee safety.
