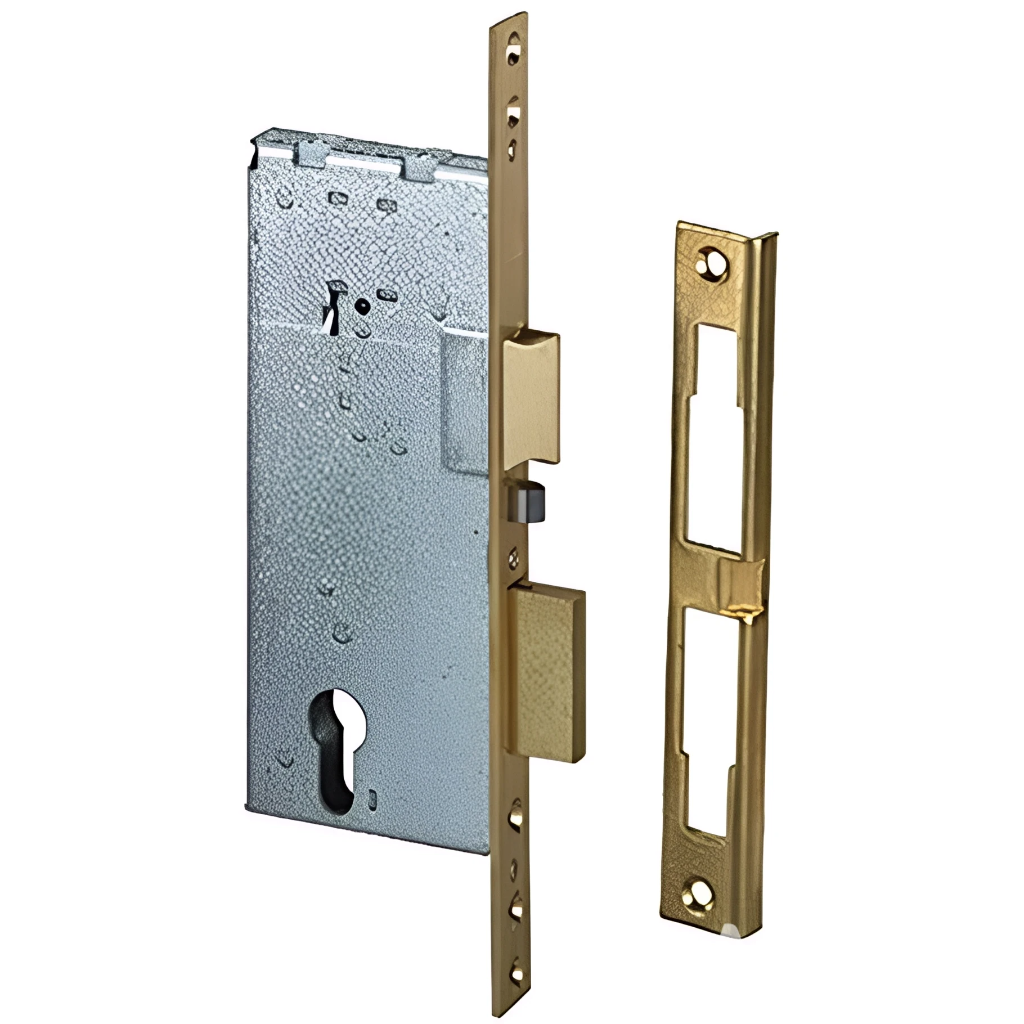

Electric Door Lock – Model 12011 (Automatic) – An advanced technical solution combining high security and electric operation. This model features an automatic latch and deadbolt system, ensuring a tight and automatic door closure as soon as it's shut, with the added capability of remote unlocking.
Key Features:
-
Fully Automatic System: Equipped with an automatic latch and deadbolt to secure the door immediately upon closing.
-
Certified Security: Complies with European specifications (Grade 3 Security) according to EN 12209 standard, providing enhanced protection against forced entry.
-
Durable Construction: Lock case made of galvanized steel with a satin-plated brass faceplate and strike plate.
-
Reversible: Features a reversible electric latch to suit different door opening directions.
-
Electric Unlocking: The lock can be opened electrically with 12V even when the deadbolt is engaged.
Technical and Electrical Specifications:
-
Power Supply: Operates on 12V AC.
-
Power Requirements: A transformer with a minimum power of 15 watts must be used.
-
Current and Resistance: Rated current of 3.1A, and a resistance of 3 ohms at DC.
-
Backset Options: Available in sizes 40, 50, 60, and 70 mm to suit various door types.
Included Components:
- Electrical contact terminals.
- Strike plate.
- Lock and cylinder mounting screws.
- Technical instruction manual.
Technical Note: Electrical connections must be made using standard cables with a minimum diameter of 1 mm, and ensure that the power supply is disconnected from the mains during installation to ensure safety.
