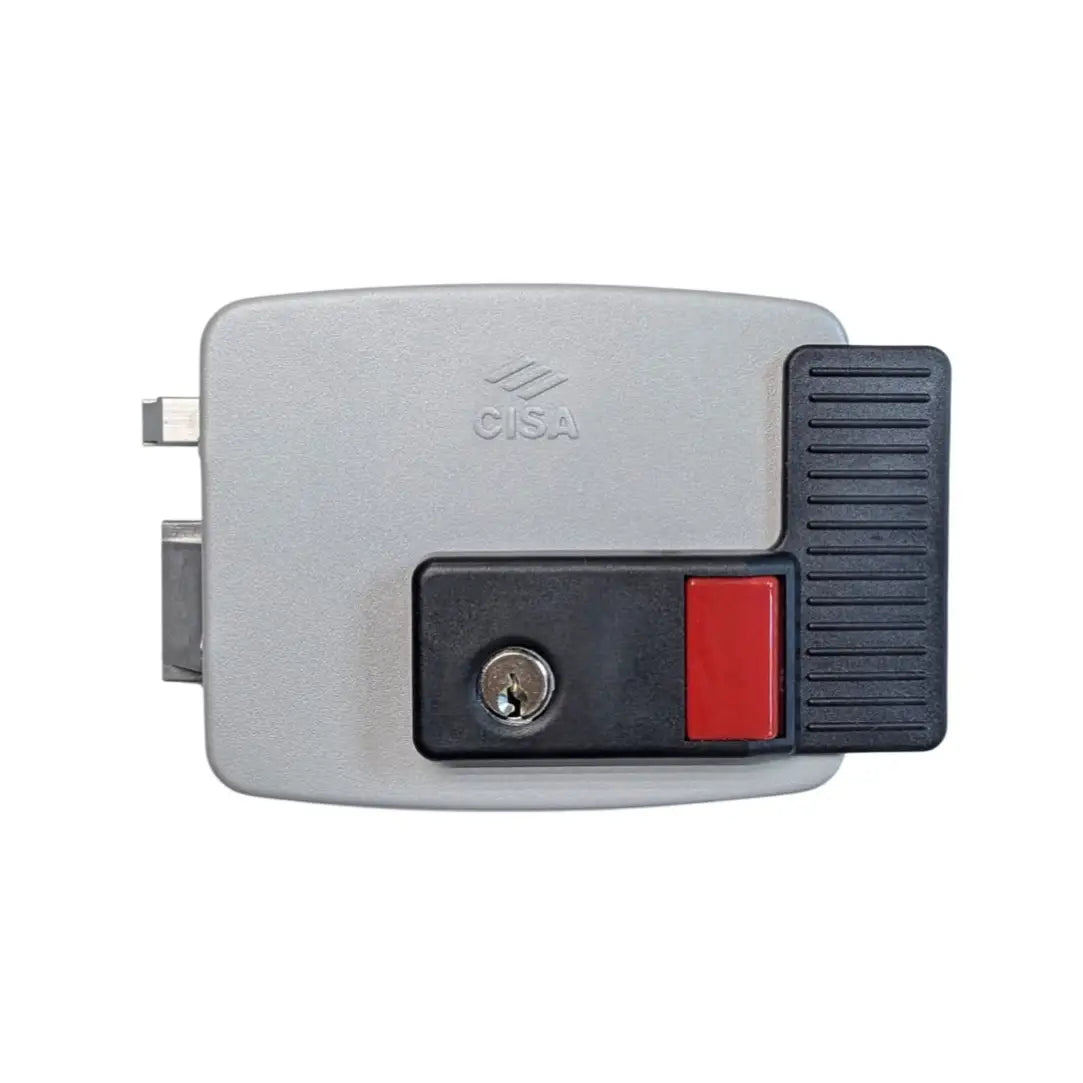

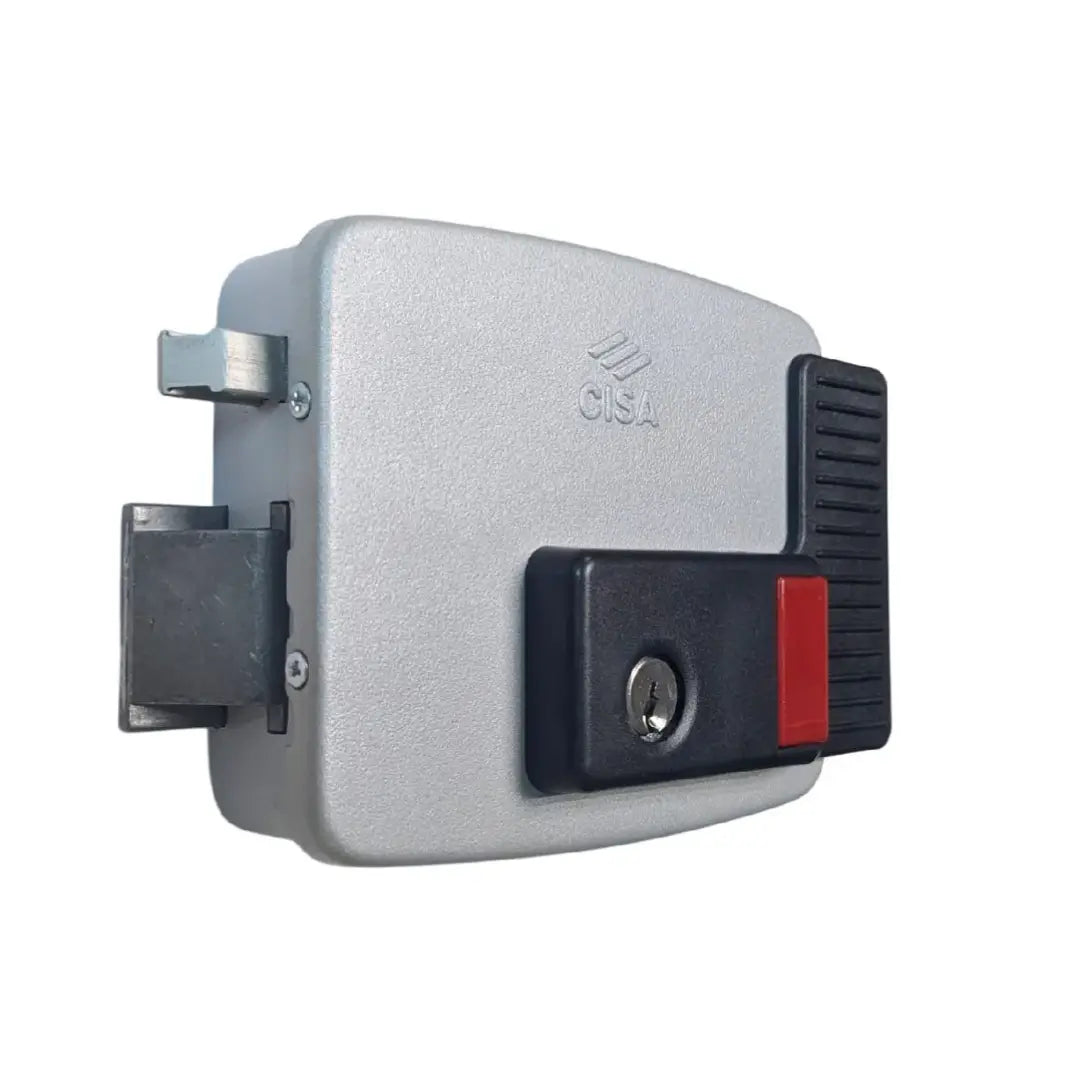

Zarfı (Lock) Electric Doors for Tash – Model (11.630.70.2.N7) (For outward-opening doors) – An advanced electric lock specifically designed for metal and wooden doors that open outwards (right). It features an enhanced protection system and a design that facilitates installation thanks to the pre-installed external cylinder.
Key Features:
-
Superior Door Protection: The lock bolt automatically closes when the door is shut, with an anti-rebound (forced opening) feature that prevents the bolt from being pulled from the outside when the lock is closed.
-
Certified Security: Complies with European specifications for security grade 3 (EN 14846), ensuring high resistance against pressure and lateral impacts.
-
Smart Electrical Performance: The lock operates efficiently even in low voltage conditions (below 12V), ensuring the opening button responds in all circumstances.
-
Exit Control Options: The key can be used to disable the internal exit button or to fix the lock in the "hold open" position for easy passage.
Multiple Operating Modes:
-
Normal Mode: Opens from the outside with a key or electrically, and from the inside with a button or electrically.
-
Restricted Mode: The internal button is disabled with the key, making opening from the inside available only via an electrical signal (intercom).
-
Hold Open Mode: The lock is fixed in the open position to allow free entry and exit without restrictions.
Technical Specifications:
-
Body Material: Stainless steel coated with a grey layer resistant to weather conditions and rust.
-
Backset: Adjustable between 50, 60, 70, and 80 mm to suit all door types.
-
Electrical Supply: 12V AC (2.5 Amps).
-
Body Dimensions: 128 x 106 x 33.5 mm.
Contents:
- Main lock body.
- Strike plate.
- 3 special keys.
- Mounting screws and installation guide.
Technical Note: To ensure the longest lifespan for the electric coil, it is preferable to use a high-quality transformer and ensure the lock is aligned with the strike plate to guarantee smooth movement of the automatic bolt.
