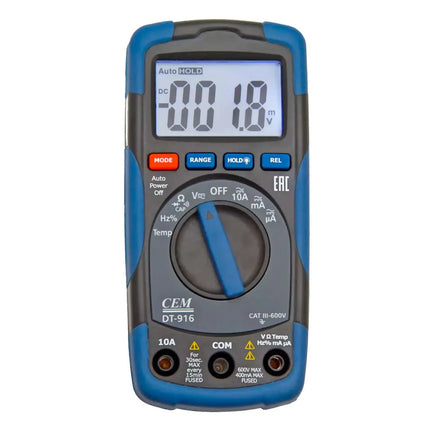

The CEM DT-916 is a smart digital multimeter with Autoranging capability, combining high accuracy with a compact, user-friendly design. This device is designed to provide comprehensive electrical measurements to meet the needs of technicians and engineers in electrical and electronic maintenance, while ensuring maximum protection.
Key Features:
-
Autoranging: The device automatically selects the most suitable range for measurement, simplifying operation and increasing result accuracy.
-
Durable and Safe Design: Features a double-insulated body that complies with international safety standards CAT III 600V to protect the user during inspection.
-
Clear LCD Display: A digital screen clearly displays results with an Auto Power Off feature to conserve battery life.
-
Data Hold Function: Allows you to "freeze" readings on the screen for easy recording of data in technical notes.
-
Comprehensive Measurements: Supports measurement of voltage, current, resistance, frequency, capacitance, and temperature in one device.
Technical Capabilities and Functions:
-
Diode and Continuity Test: Equipped with an audible buzzer for quickly and efficiently checking circuit continuity.
-
Frequency and Duty Cycle Measurement: Supports frequency measurement up to 10MHz and Duty Cycle measurement from 0.1% to 99.9%.
-
Relative Button: Allows for relative measurements compared to a stored reference value, ideal for checking subtle differences in circuits.
-
Overload Protection: Equipped with internal protective fuses to ensure the safety of the device when exposed to unexpected high currents.
Technical Specifications (Model DT-916):
| Model |
DT-916 (Autoranging) |
| Voltage Measurement (AC/DC) |
Up to 600V |
| Current Measurement (AC/DC) |
Up to 10A (maximum for 30 seconds) |
| Resistance Measurement |
Up to 40MΩ |
| Frequency Measurement |
5Hz to 10MHz |
| Temperature Measurement |
-20°C to 760°C (or -4°F to 1400°F) |
| Safety Rating |
CAT III 600V / Class 2 Double Insulation |
| Additional Features |
Capacitance Measurement - Continuity Test - Auto Power Off |
Important Notes for Technicians:
- The device is equipped with an easy-to-replace 9V battery and a low power indicator.
- Comes with test leads, a thermocouple, and an external rubber protective cover for shock absorption.
