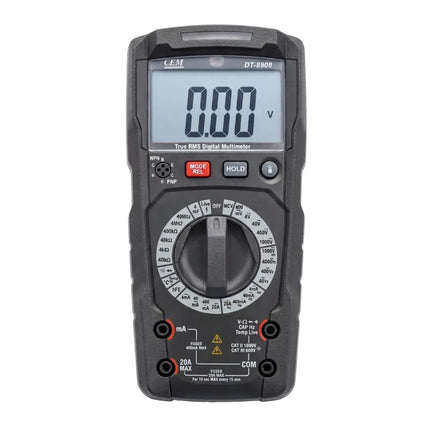

The CEM DT-8908 is a professional digital multimeter that combines high accuracy and durability, designed to provide precise True RMS readings for sinusoidal waveforms. The device features the ability to measure current up to 20 amps and voltage up to 1000 volts, making it an ideal tool for engineers and maintenance technicians in industrial and home environments.
Key Features:
-
True RMS Accuracy: Ensures accurate results when measuring AC voltage and current, even with signal distortion.
-
Superior Protection: Equipped with full 1000V overload protection on all ranges, with fuse protection for current ranges.
-
NCV Voltage Detector: Non-contact voltage detection feature to quickly and safely identify live wires.
-
Durable and Robust Design: Bi-color outer casing designed to withstand impacts and heavy use on site.
-
Large LCD Screen: Clear display with Auto Backlight and an integrated flashlight for working in dark areas.
Multiple Capabilities and Functions:
-
Comprehensive Measurements: Supports measurement of voltage, current, resistance, capacitance, frequency, and temperature, in addition to transistor testing (hFE).
-
Visual and Audible Alerts: Integrated alarm system for alerts when voltage or continuity is detected.
-
LED and Diode Testing: Dedicated functions for checking the efficiency of diodes and LED lights.
-
Ease of Use: Features automatic shutdown to conserve battery and a low battery indicator.
Technical Specifications (Model DT-8908):
| Model |
DT-8908 (True RMS) |
| Voltage Measurement (AC/DC) |
Up to 1000V |
| Current Measurement (AC/DC) |
Up to 20A (with fuse protection) |
| Resistance |
Up to 40MΩ |
| Capacitance |
Up to 4mF |
| Frequency |
From 9.999Hz to 9.999MHz |
| Temperature |
From -20°C to 1000°C |
| Safety Rating |
CAT III 600V / CAT II 1000V |
| Dimensions and Weight |
188mm x 88mm x 56mm | Weight: 420g |
Package Contents:
- Test leads.
- Type K thermocouple probe.
- 3 x 1.5V AAA batteries.
- Durable carrying case.
