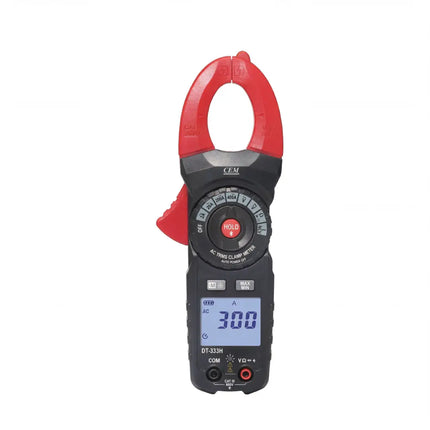

The CEM DT-333H amp clamp meter is an advanced and compact device specifically designed for technicians seeking accuracy and speed in AC current measurement. The device features True RMS technology, ensuring precise results even with distorted electrical waveforms, along with a modern design that facilitates its use in tight spaces and crowded cable environments.
Key Features:
-
True RMS Accuracy: Ensures accurate AC voltage and current measurements under various technical conditions.
-
Compact and Professional Design: A durable, easy-to-grip body, ideal for fieldwork and industrial workshops.
-
Backlit LCD Screen: A clear screen that makes it easy to read results in low-light conditions or dark places.
-
Integrated Safety Functions: Supports Non-Contact Voltage (NCV) detection and Live Test to ensure user safety.
-
Fast Response: Features fast A/D converting for time-saving during inspections.
Functions and Technical Capabilities:
-
AC Current Measurement: Measurement capability up to 400 Amps with a precise range.
-
Protection and Reliability: Conforms to international safety standards CAT III 600V, making it safe for professional use.
-
Power Saving: Equipped with an auto-off feature to preserve battery life for longer periods.
-
Easy Control: Flexible rotary switch allows easy one-handed mode switching.
Technical Specifications (Model DT-333H):
| Model |
DT-333H |
| Current Type |
AC only up to 400A |
| Voltage Measurement |
Up to 600V (AC/DC) |
| Resistance |
Up to 20 MΩ |
| Jaw Opening |
30 mm (1.18 inches) |
| Dimensions |
125 × 65 × 38 mm |
| Weight |
284 grams |
| Accessories |
Test leads, carrying case, AAA batteries |
Additional Tips:
- The device also supports diode testing and continuity testing with an audible buzzer.
- It is recommended to regularly clean the connection terminals to ensure continuous measurement accuracy.
