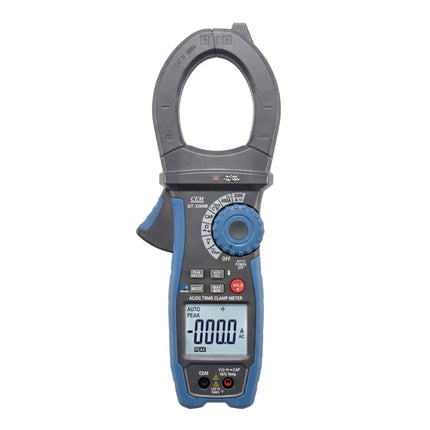

The CEM DT-3398B is one of the most powerful professional clamp meters, designed to handle high currents up to 2000 Amps. The device provides accurate readings of AC/DC current and voltage regardless of waveform, thanks to True RMS technology, making it the top choice for industrial and commercial applications with non-linear loads.
Key Features:
-
Superior Measurement Capability (2000A): Supports AC and DC current measurement with a very wide range suitable for large stations and electrical panels.
-
True RMS Technology: Ensures measurement accuracy in environments with distorted electrical waveforms.
-
CAT IV 1000V Industrial Safety: Advanced protection against electronic overload to ensure the safety of technicians in the toughest working conditions.
-
Bluetooth Connectivity: Supports wireless data transfer for monitoring and analyzing readings via smart devices.
-
Wide Jaw Opening (52mm): Allows for easy handling of large cables and busbars.
Professional Capabilities and Functions:
-
Inrush Current Measurement: An essential feature for measuring the inrush current when starting motors.
-
NCV Voltage Detector: Non-contact voltage detection feature for increased safety during quick inspections.
-
Dual Illumination: Equipped with a flashlight and screen backlight for working in dark areas.
-
Analog Bargraph: Provides a quick visual representation of instantaneous reading changes.
-
Multiple Measurements: Includes resistance measurement up to 60MΩ, capacitance, frequency, and temperature up to 1000°C.
Technical Specifications (Model DT-3398B):
| Model |
DT-3398B |
| Current Measurement (AC/DC) |
Up to 2000A |
| Voltage Measurement (AC/DC) |
Up to 1000V |
| Resistance |
Up to 60MΩ |
| Counts |
6000 Counts |
| Safety Rating |
CAT IV 1000V |
| Battery Type |
9V Battery |
| Special Features |
Bluetooth - Inrush Current - NCV Detector - Temperature Measurement |
Package Contents:
- Professional test leads.
- Durable carrying and protection case.
- Temperature probe.
- 9V battery and user manual.
