The Prexiso Lux Meter is a professional tool designed for highly accurate measurement of illuminance in a wide range of applications, such as photography, laboratories, architectural work, engineering, and construction sites. It provides accurate and easy-to-read measurements thanks to its clear digital display and low power consumption.
The device features a separate photodetector that allows it to be placed in the optimal location for light measurement, with an advanced electronic circuit (LSI) ensuring high reliability and a long service life. It also supports automatic zero adjustment and has a low battery indicator for easy monitoring during operation.
Key Features:
-
Suitable for a wide range of light measurements
-
Accurate and easy-to-read measurements via a clear LCD screen
-
High measurement accuracy with excellent stability
-
LSI circuit for higher reliability and durability
-
Very wide light measurement range
-
Low battery level indicator
-
Automatic zero adjustment
-
Low power consumption
-
Separate photodetector for more accurate measurement at the desired location
Technical Specifications:
-
Measurement Range: 0.1 Lux ~ 400,000 Lux
-
Accuracy:
-
Up to 10,000 Lux: ±4% of reading ±0.5% of full scale
-
Above 10,000 Lux: ±5% + 10 digits
-
Resolution: 1 Lux
-
Sensor: Silicon photodiode with filter
-
Repeatability: ±2%
-
Temperature Effect: ±0.1% per °C
-
Power Source: 2 x AAA batteries (1.5V)
-
Dimensions: 174 × 51 × 32 mm
-
Weight: 188 grams

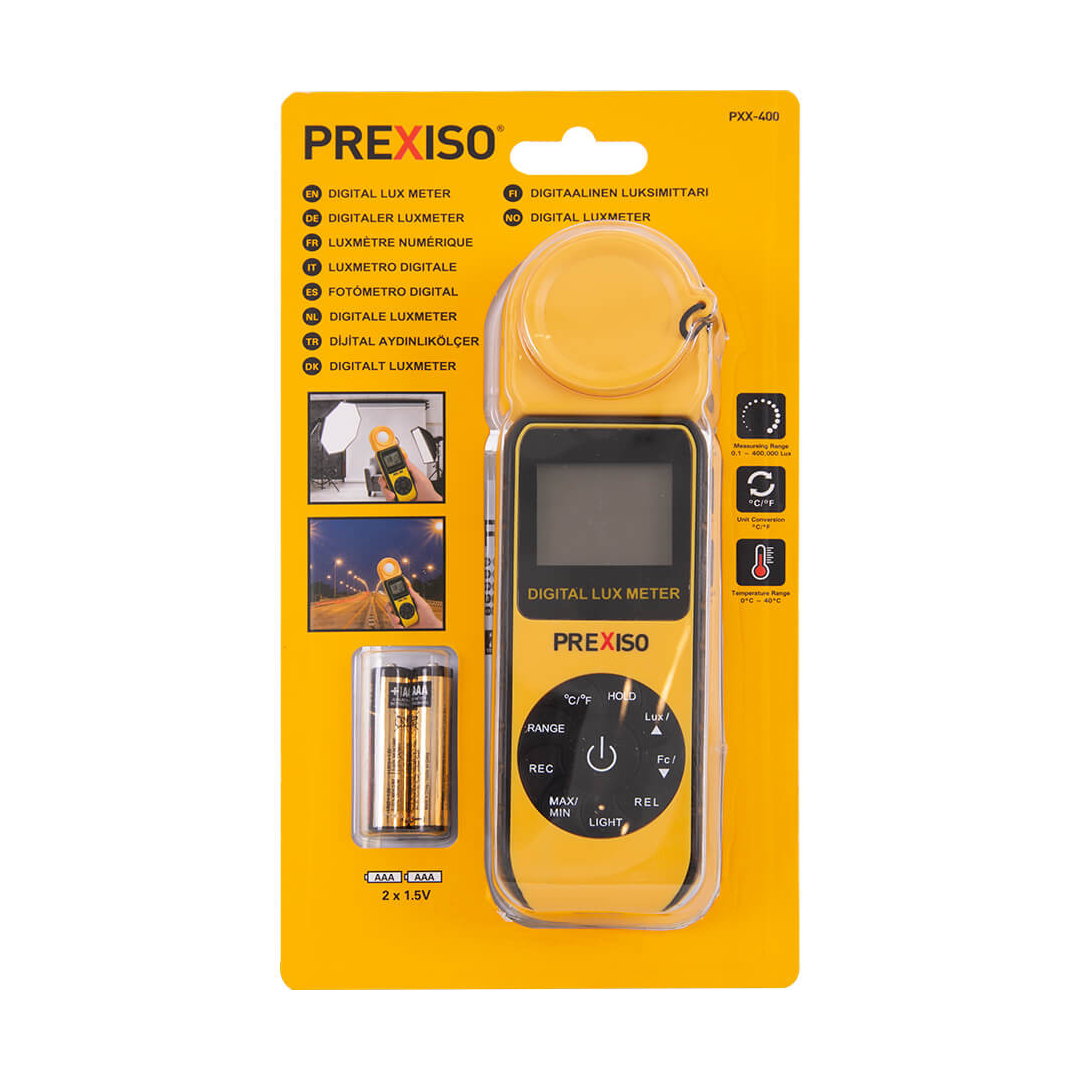

Package Contents:
-
Prexiso Lux Meter
-
2 x AAA batteries (1.5V)
Reference Illuminance Values for Indoor Spaces (Lux):
Offices:
-
Meeting rooms and reception: 200 – 750 Lux
-
Office work: 700 – 1,500 Lux
-
Printing and drawing: 1,000 – 2,000 Lux
Factories:
-
Packaging and corridors: 150 – 300 Lux
-
Production lines: 300 – 750 Lux
-
Inspection and quality control: 750 – 1,500 Lux
-
Electronics assembly: 1,500 – 3,000 Lux
Hotels:
Stores:
-
Internal corridors: 150 – 200 Lux
-
Display cases and packaging tables: 750 – 1,500 Lux
-
Front display window: 1,500 – 3,000 Lux
Hospitals:
-
Patient rooms and storage: 100 – 200 Lux
-
Medical examination rooms: 300 – 750 Lux
-
Operating rooms and emergency: 750 – 1,500 Lux
Schools:
-
Theaters and gymnasiums: 100 – 300 Lux
-
Classrooms: 200 – 750 Lux
-
Laboratories and libraries: 500 – 1,500 Lux
