Description

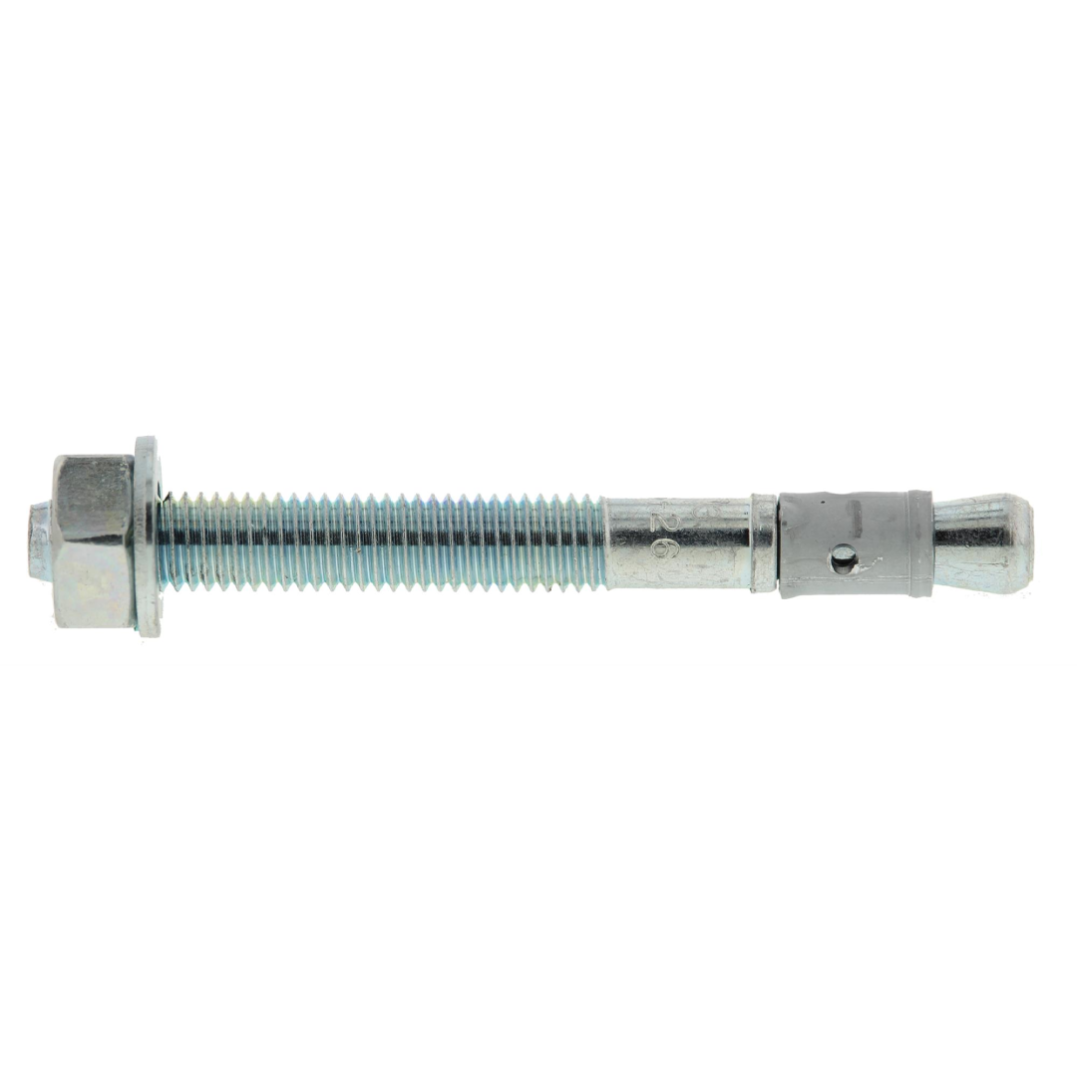

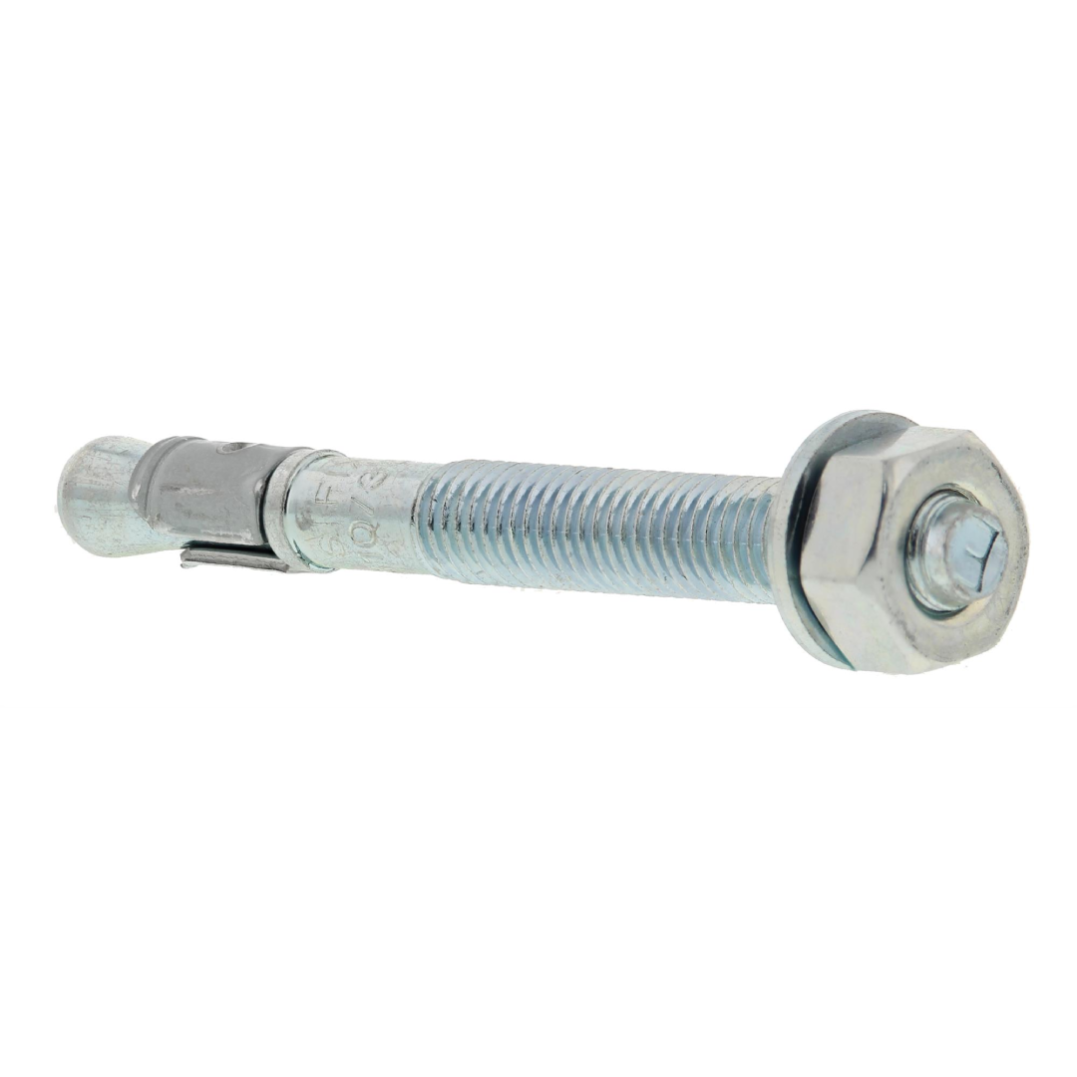

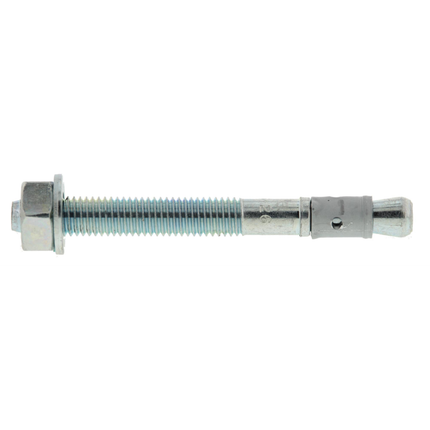

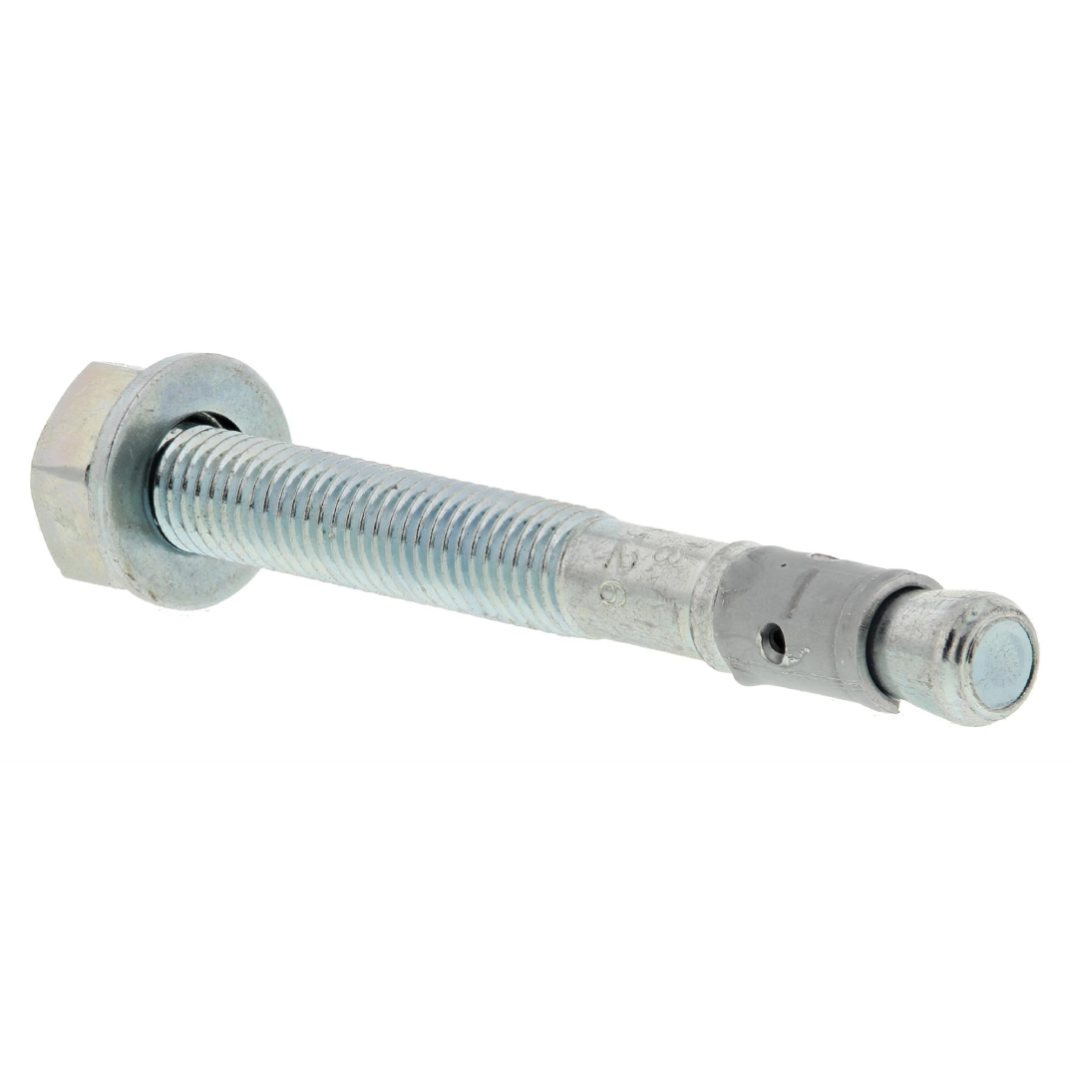

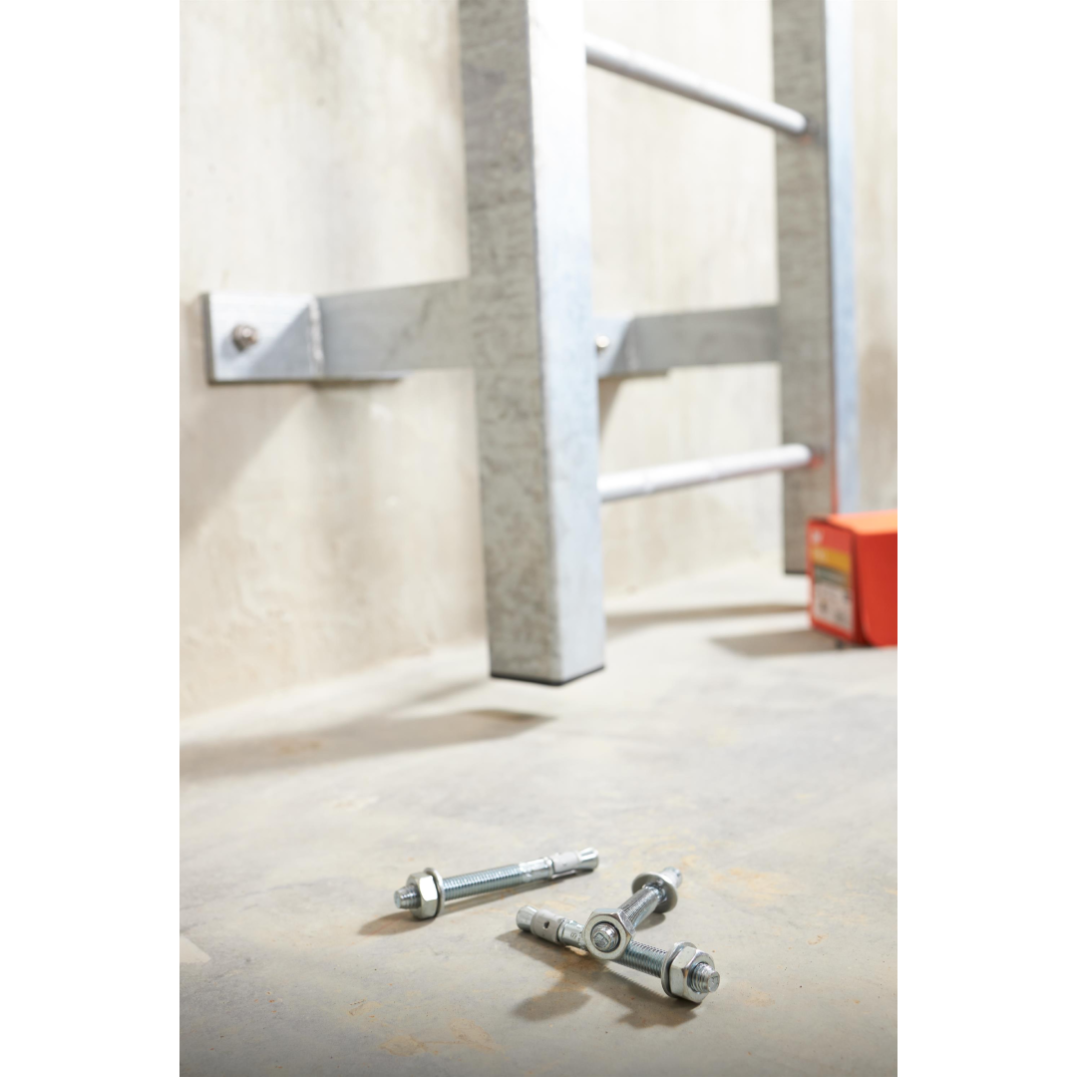

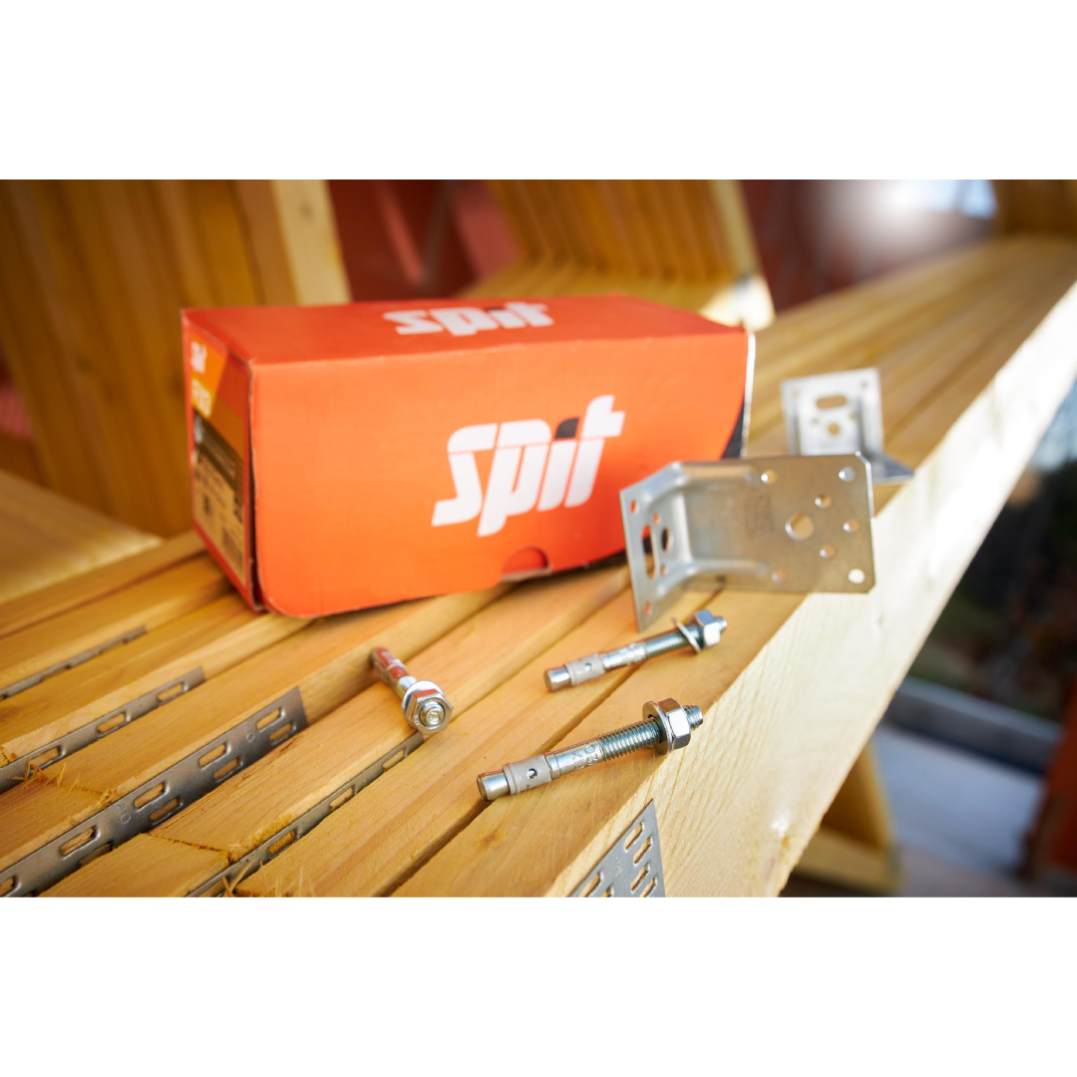

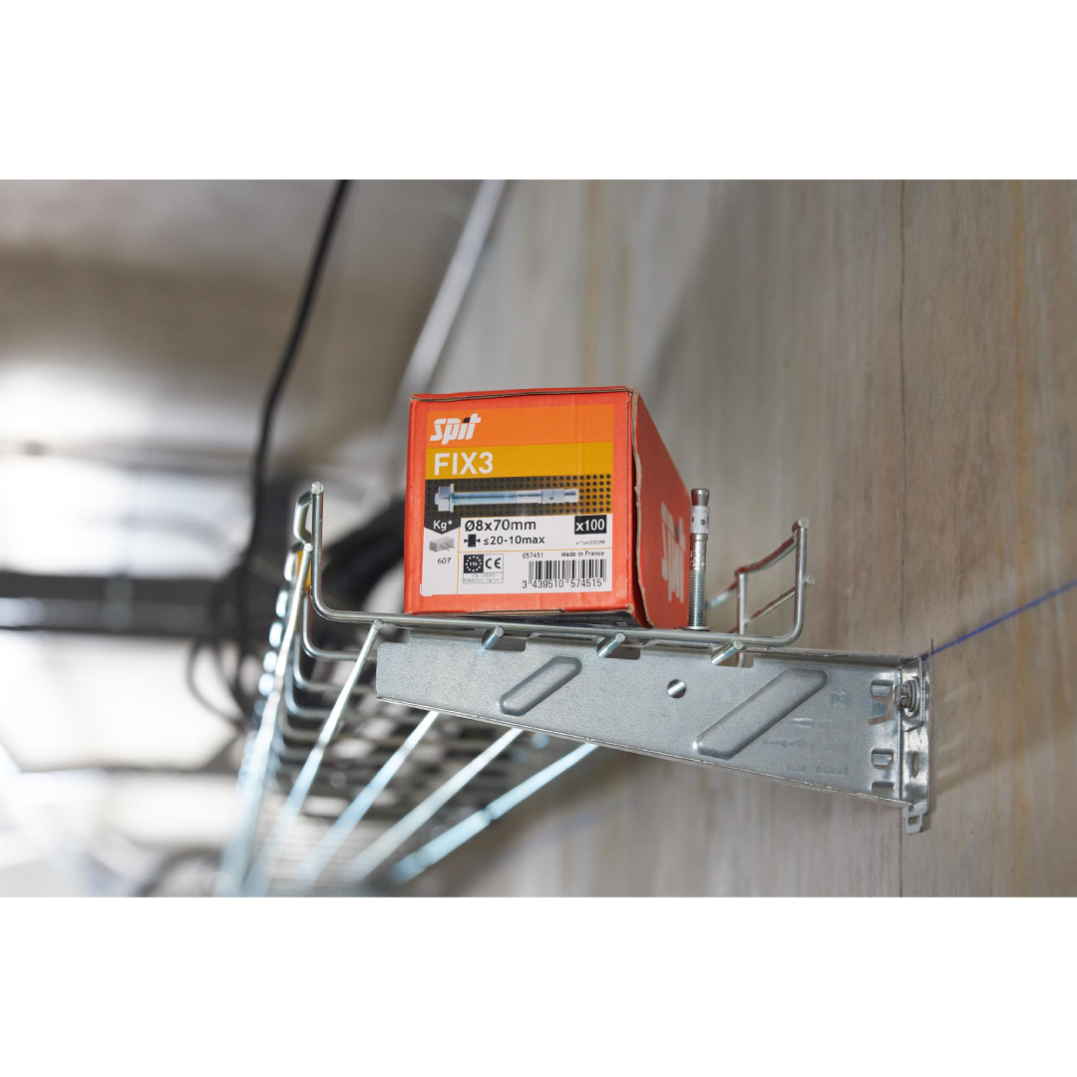

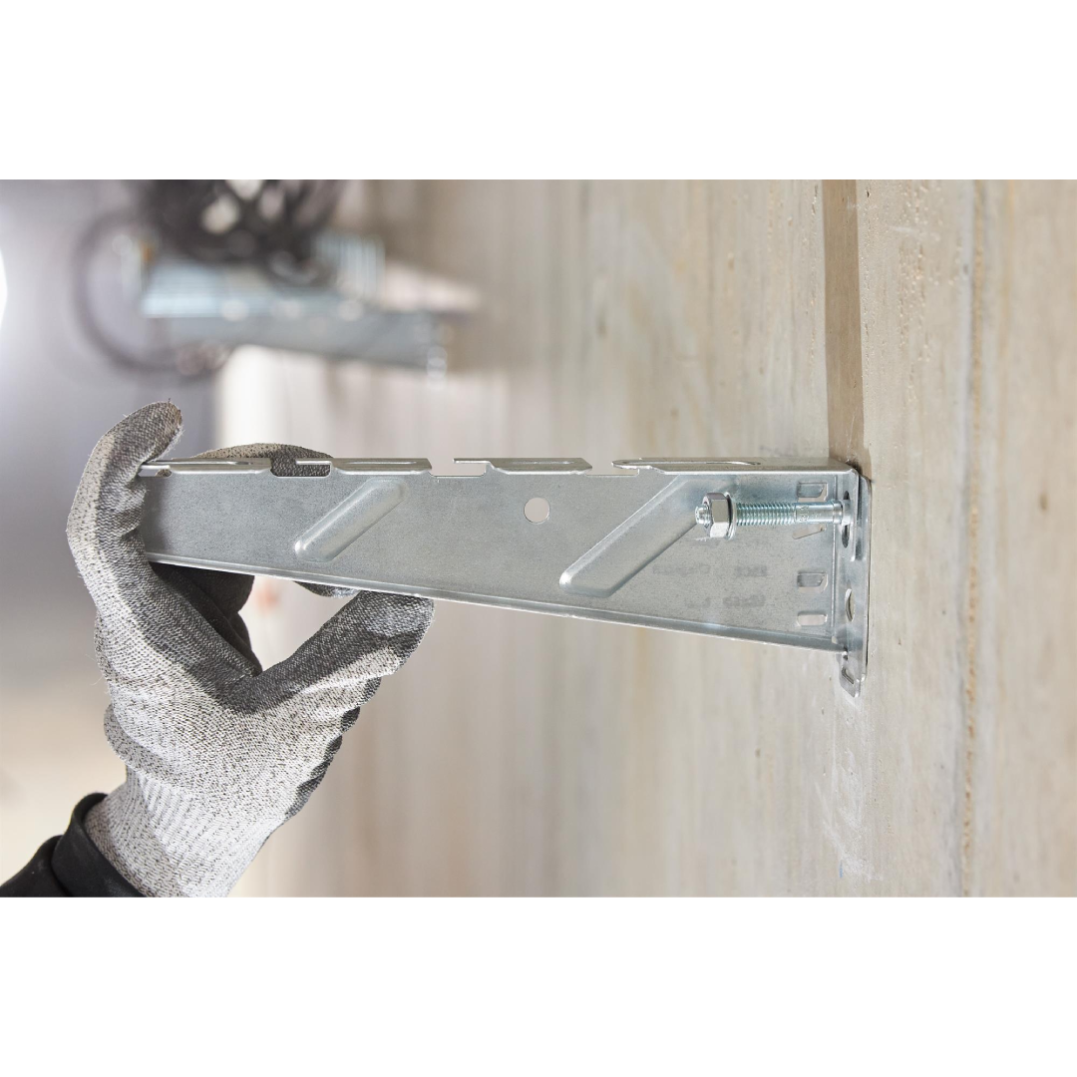

The FIX3 Anchor – Size 16x150/55-40 – is a high-performance mechanical wedge anchor designed for heavy loads. It features an extended length (150 mm) to allow for fastening thicker elements or achieving greater embedment depth in non-cracked concrete. It combines tremendous structural strength with European approval, making it the ideal solution for anchoring metal bridges and large structural foundations.
Professional Features and Benefits:
-
Exceptional Approved Performance (ETA Option 7): European approved for use in non-cracked concrete, offering one of the highest load capacities in its class (M16), ensuring superior safety for buildings and structures.
-
Extended Length for Diverse Applications: With its 150 mm length, this model allows for fastening elements up to 55 mm thick, providing significant flexibility in construction sites.
-
Superior Load Bearing Capacity: Designed to handle very high shear and tensile forces, making it ideal for critical anchor points subjected to continuous stress.
-
Advanced Expansion Clip Design: Ensures uniform distribution of expansion force within the hole, providing a secure grip that prevents slippage even under high loads.
-
Corrosion Protection: Made from high-quality zinc-coated steel for long-lasting durability.
Technical Specifications (Model 057482):
-
Product Name: FIX3 16x150/55-40.
-
Product Code (Eurocode): 057482.
-
Drill Ø: 16 mm.
-
Total Anchor Length: 150 mm.
-
Fixture Thickness (tfix): From 40 mm to 55 mm.
-
Minimum Embedment Depth: 95 mm.
-
Wrench Size: 24 mm.
-
Setting Torque: 100 Nm.
-
Country of Origin: France.
Recommended Loads:
-
Tensile Strength in C20/25 Concrete: 16.76 kN (approx. 1676 kg).
-
Shear Strength in C20/25 Concrete: 20.86 kN (approx. 2086 kg).
Primary Applications:

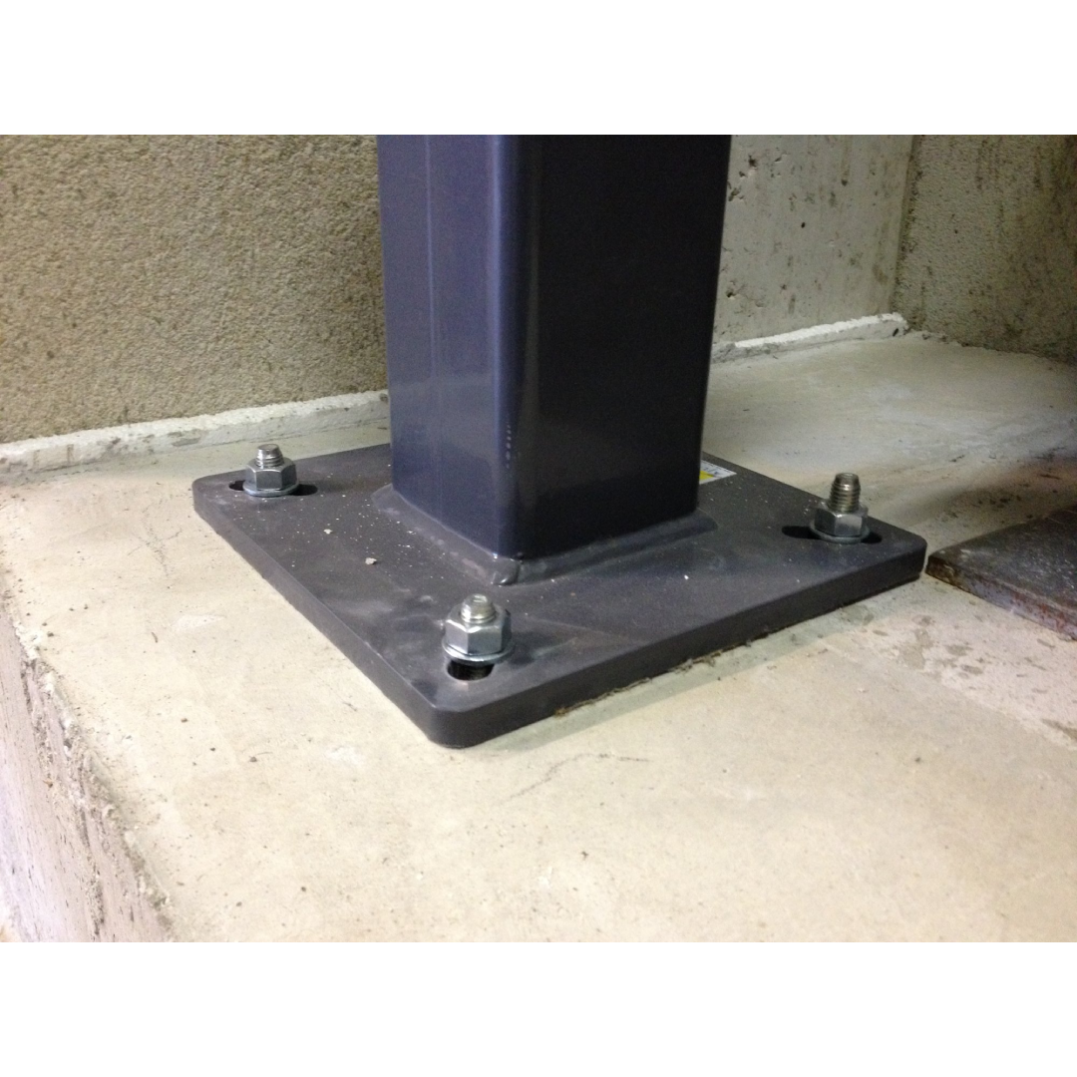

- Anchoring large steel structures and primary foundations.
- Mounting thick timber beams onto concrete.
- Fastening heavy-duty impact barriers in ports and factories.
- Anchoring large industrial crane systems and machinery.
Box Contents:
- Cardboard box containing 10 FIX3 anchors (including nuts and washers).
Technical Tip: Due to the high strength and required torque (100 Nm), ensure the use of a precise torque wrench to achieve optimal clip expansion without over-stressing the anchor.
