Description

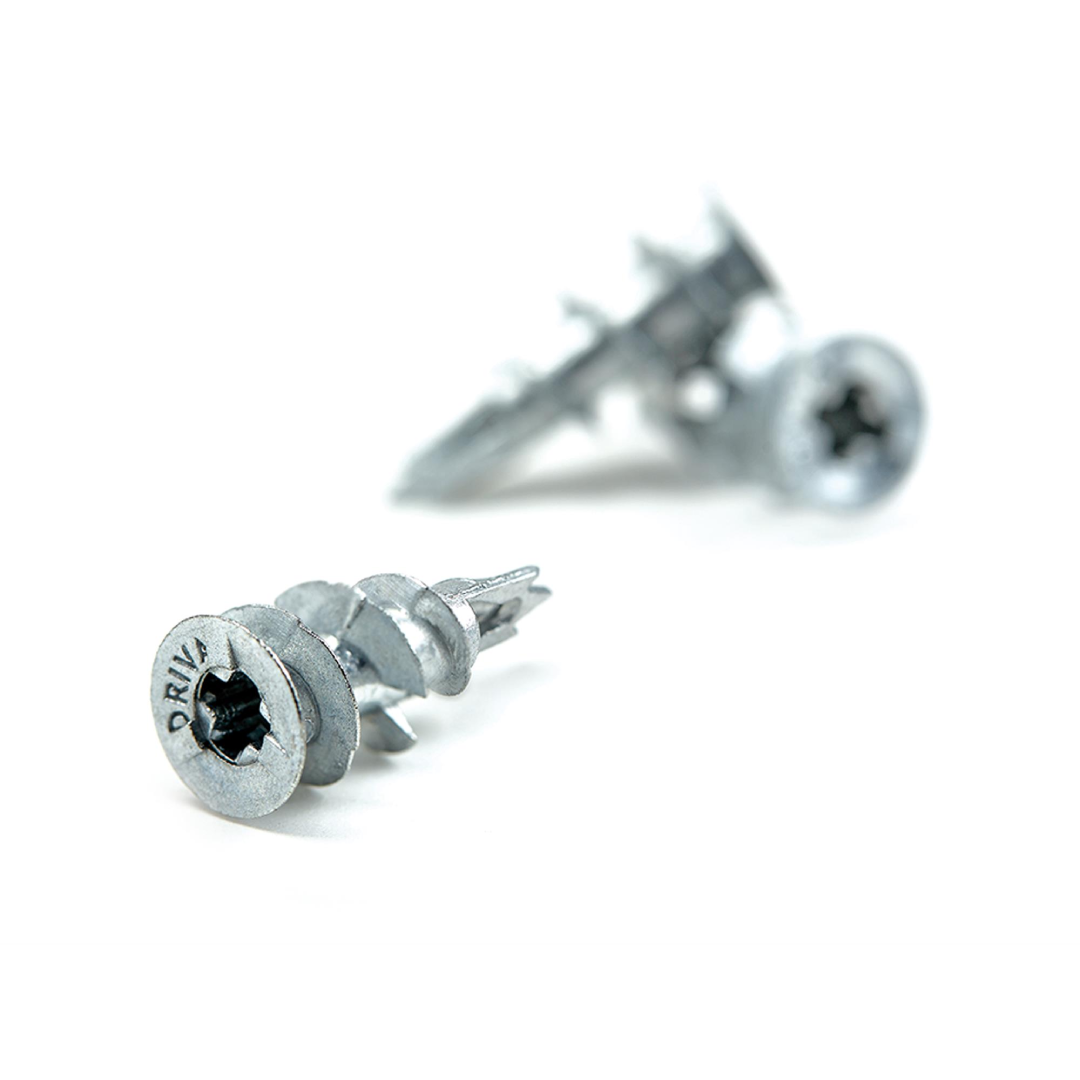

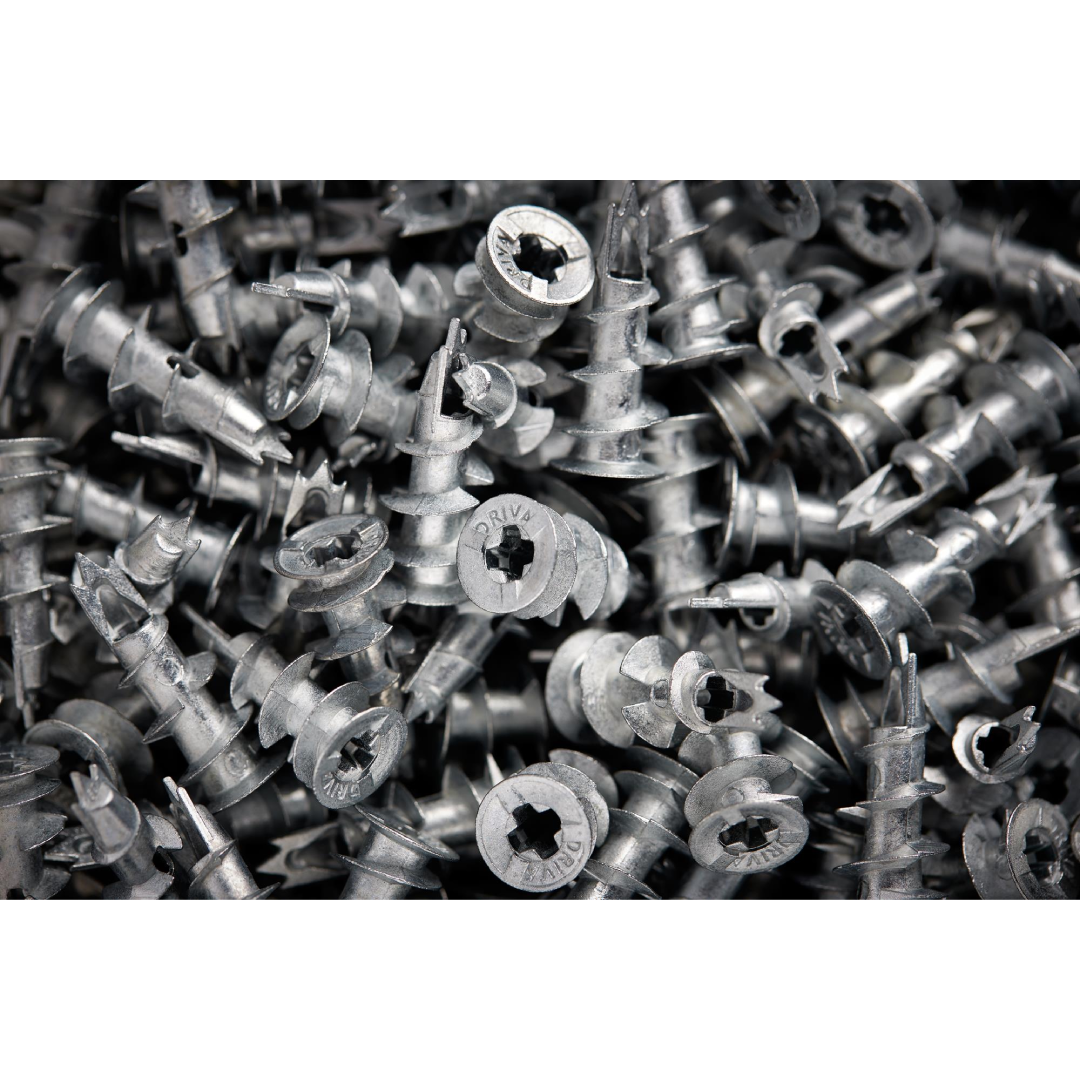

DRIVA TP12 is an original self-drilling anchor specifically designed for plasterboard and porous concrete. Thanks to its innovative design, this anchor eliminates the need for pre-drilling, making it the fastest and most reliable solution for fastening light to medium-weight items to dry walls.
Professional Features and Benefits:
-
No Pre-drilling Required: Features a pointed and aggressive nose that penetrates plasterboard immediately upon rotation.
-
Unique Thread Design: The spiral design of the anchor ensures superior stability and optimal load distribution within the plasterboard.
-
Flexible Installation: Allows you to control the screw depth to match the thickness of the item to be fastened.
-

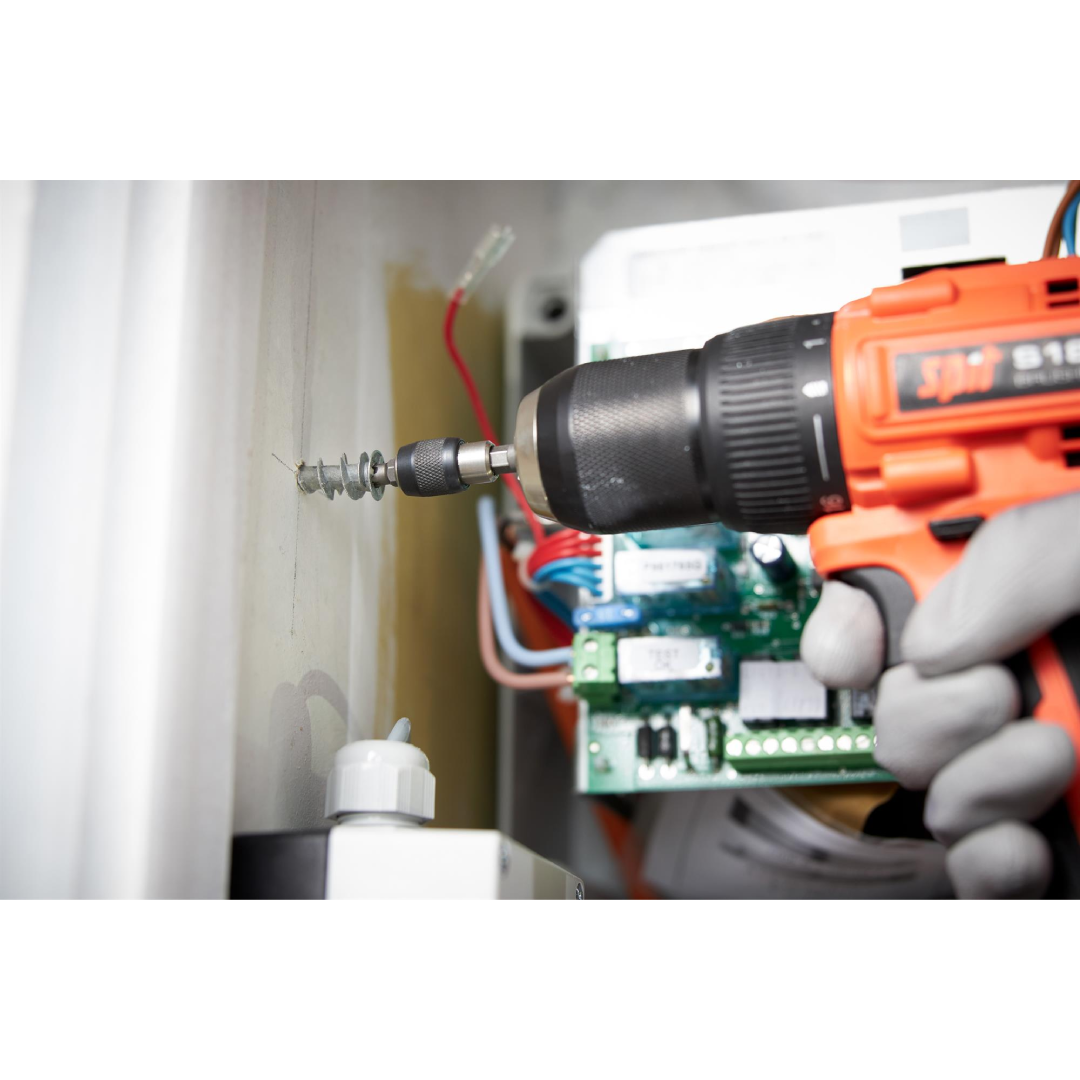

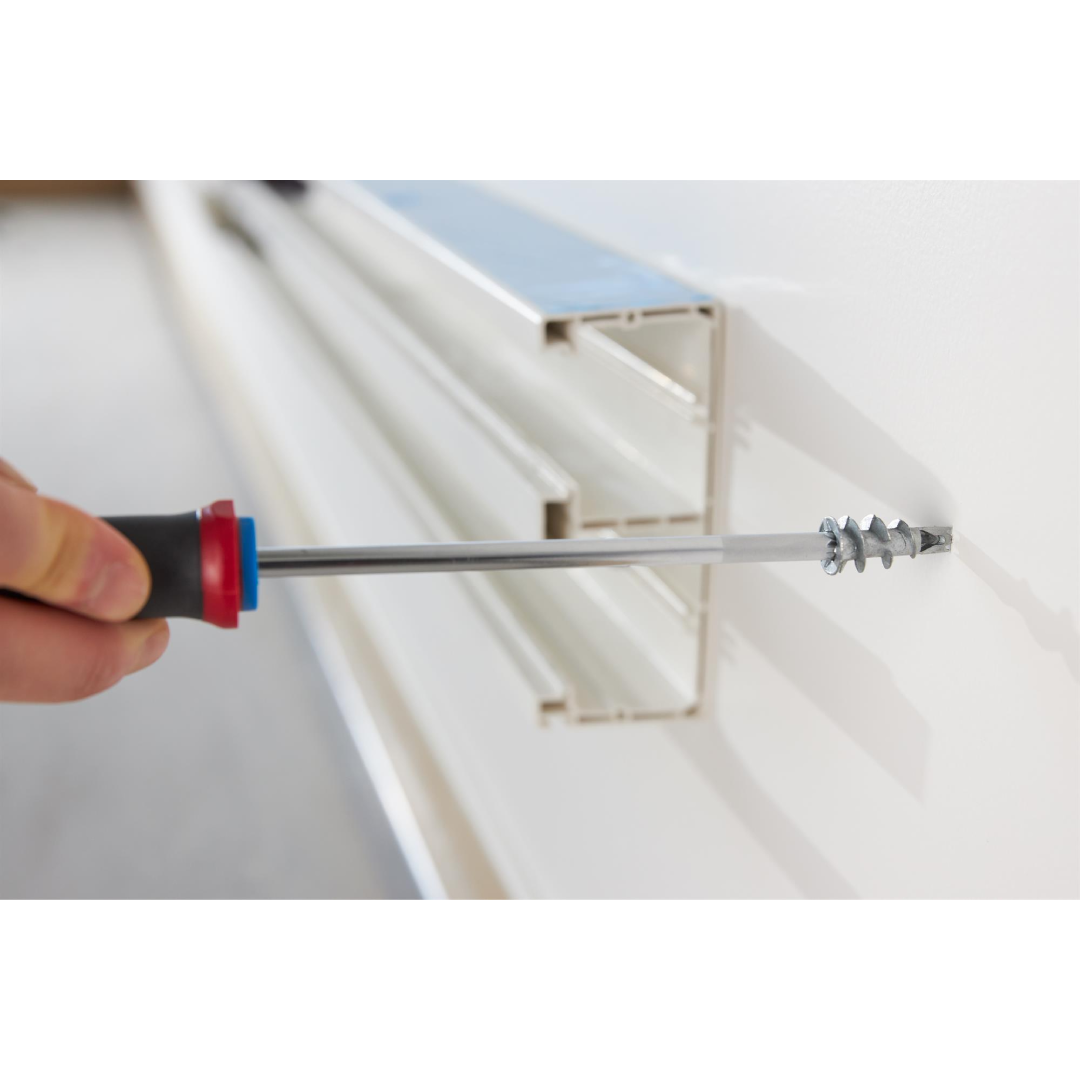

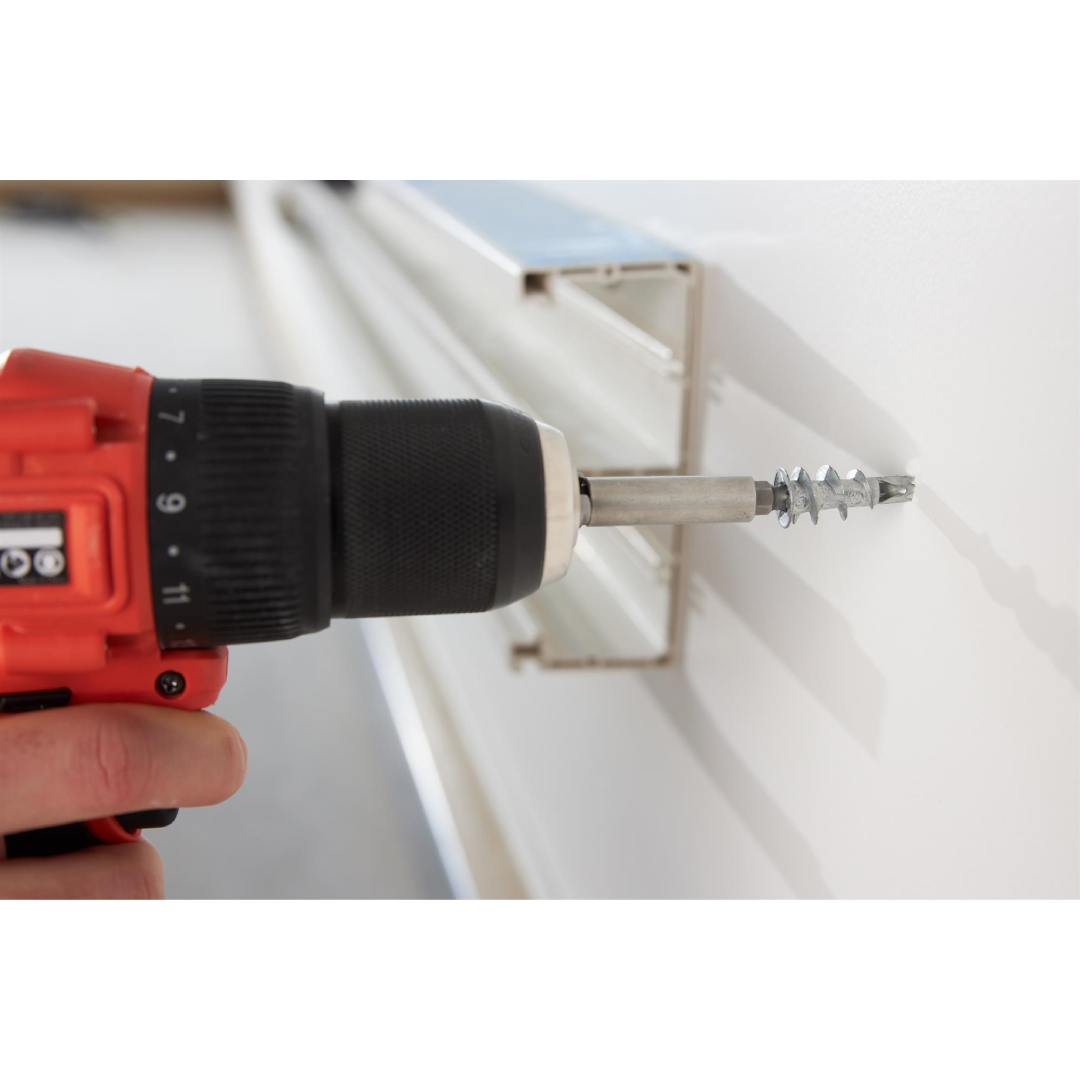

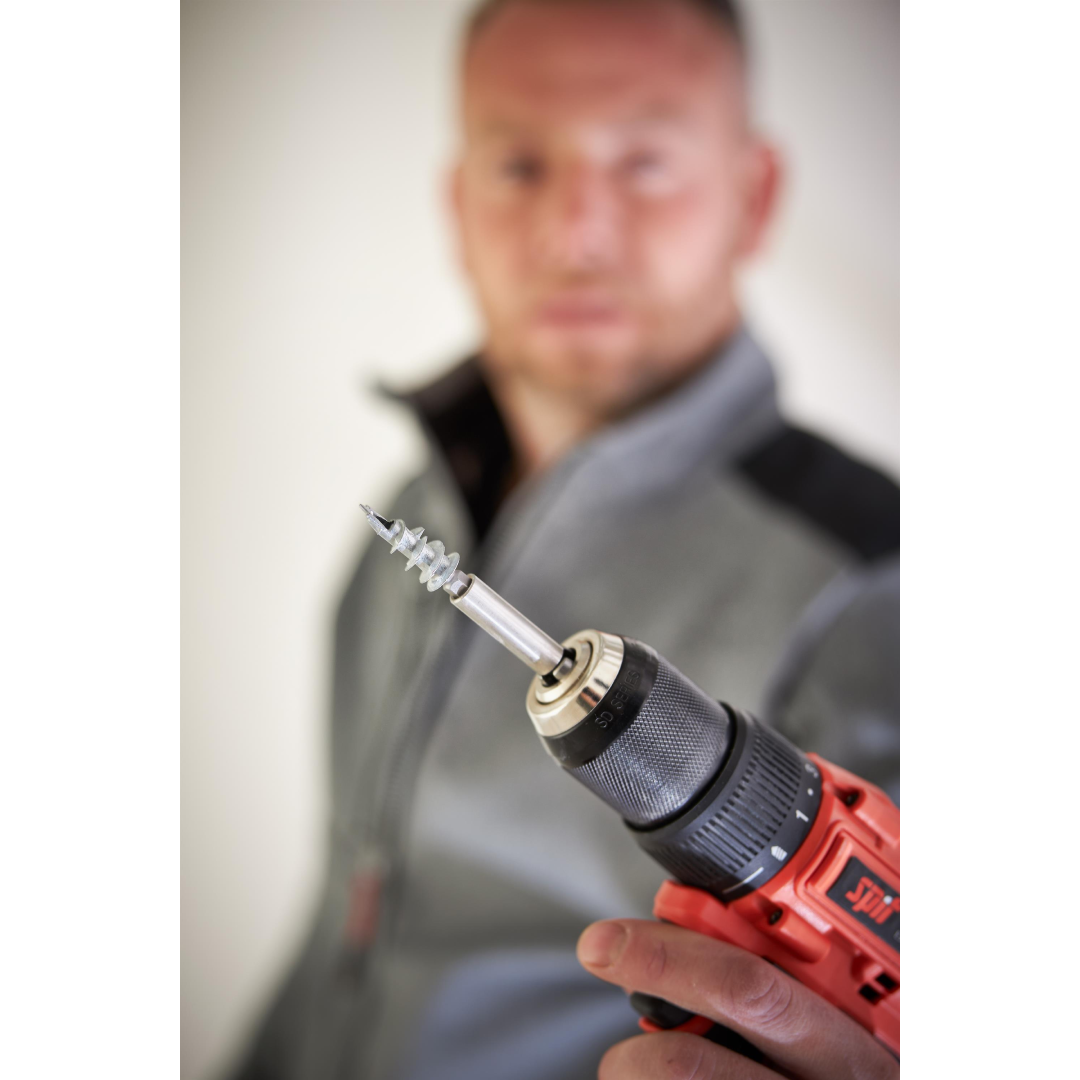

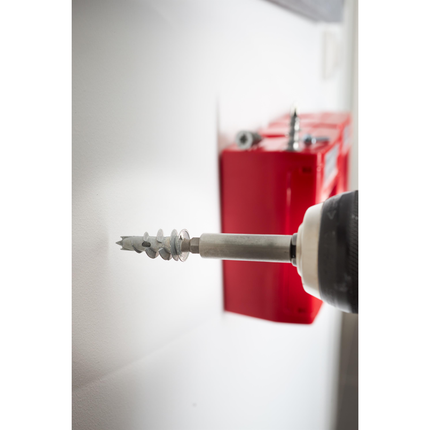

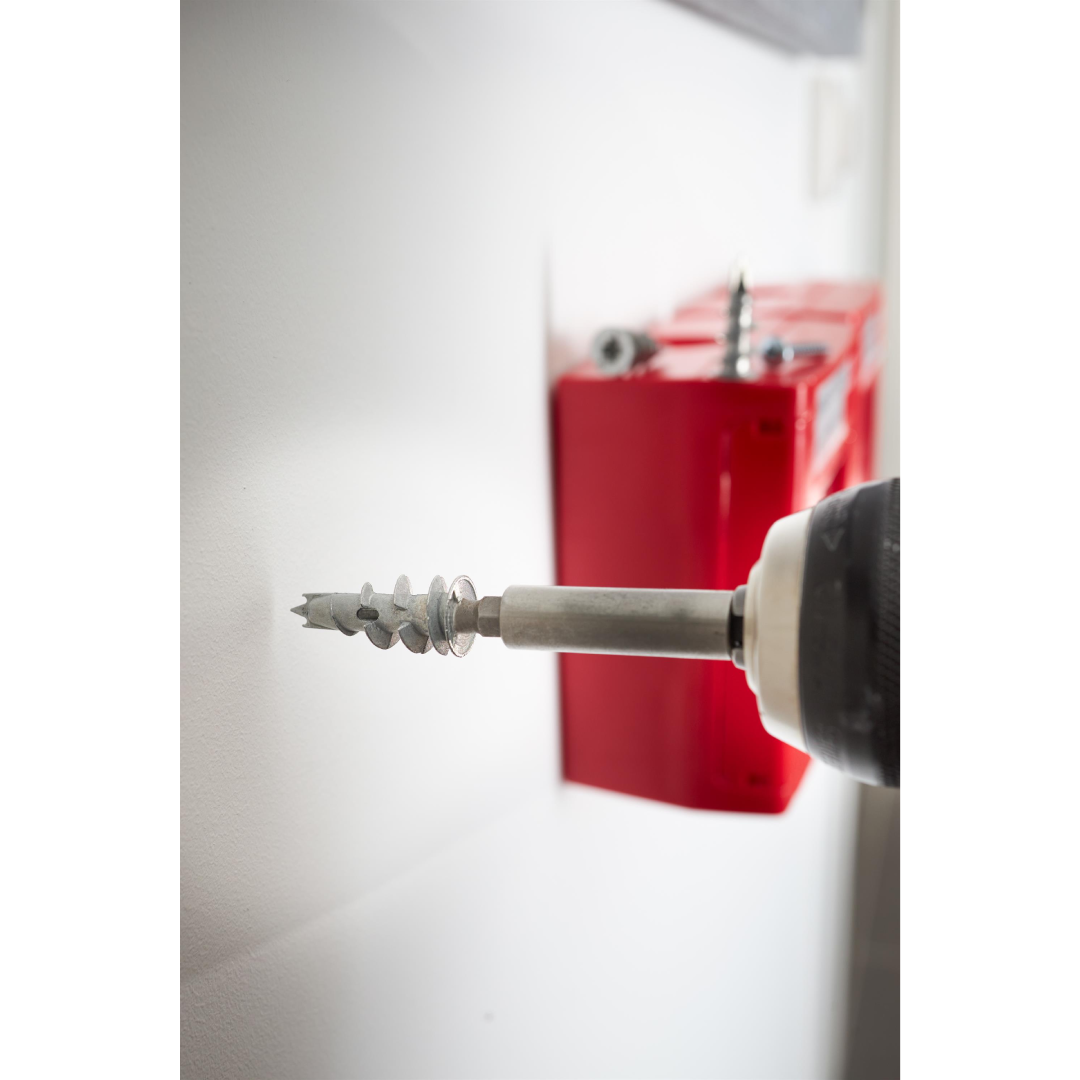

Quick and Easy Installation: Can be installed using a hand screwdriver or an electric drill (PZ2 bit).
-
Versatile: Suitable for all types of plasterboard and lightweight concrete.
Technical Specifications (Model 059360):
-
Product Name: DRIVA TP12.
-
Product Code (Eurocode): 059360.
-
Anchor Length: 31 mm.
-
Maximum Fastener Thickness: 12 mm.
-
Head Type: Cylinder head with PZ2 size.
-
Material: Treated with a zinc layer for rust protection.
-
Country of Origin: France.
Recommended Loads:
-
Shear Strength in Plasterboard: 0.18 kN (approx. 18 kg).
-
Tensile Strength in Plasterboard: 0.06 kN (approx. 6 kg).
-
Tensile Strength in Porous Concrete: 0.06 kN.
Applications and Uses:

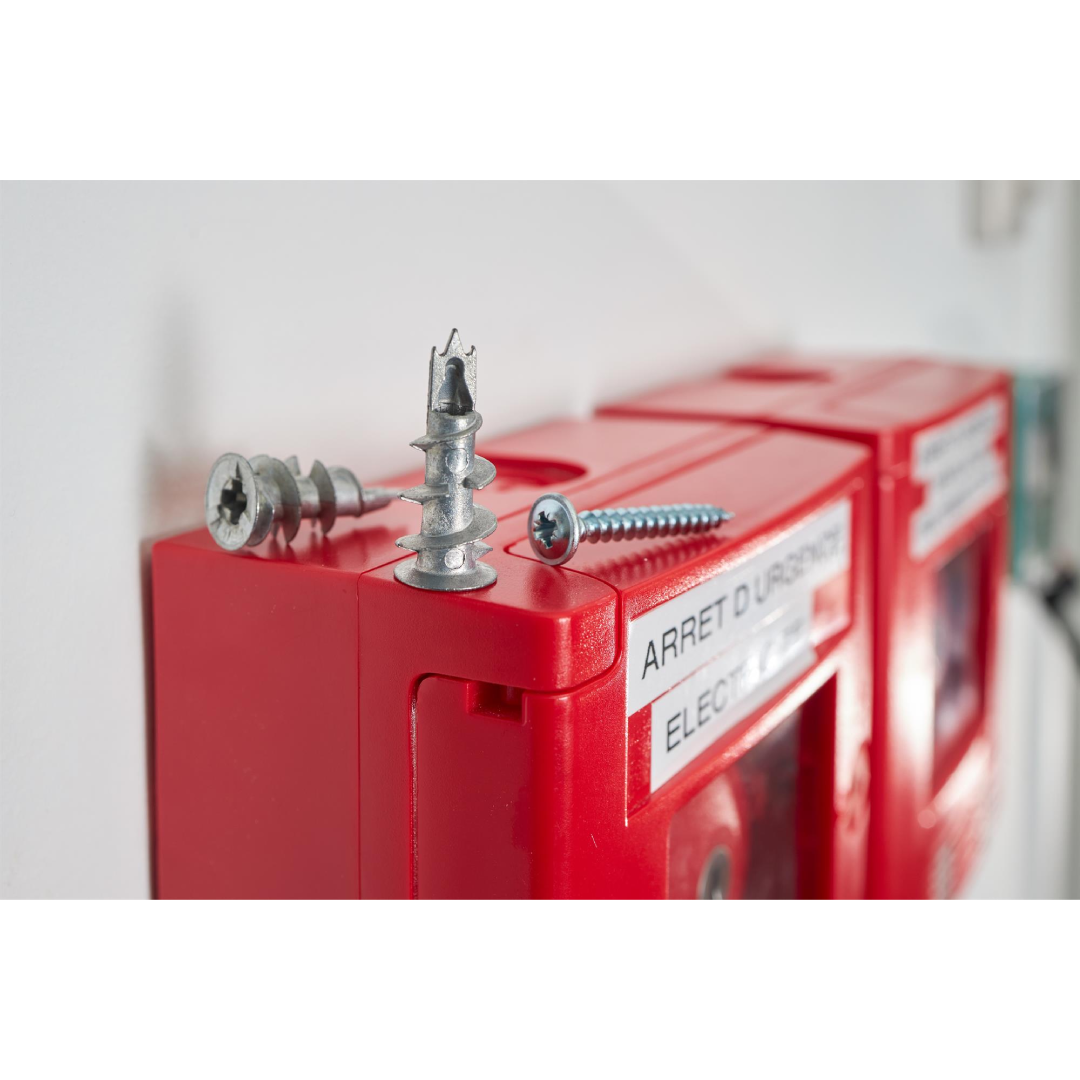

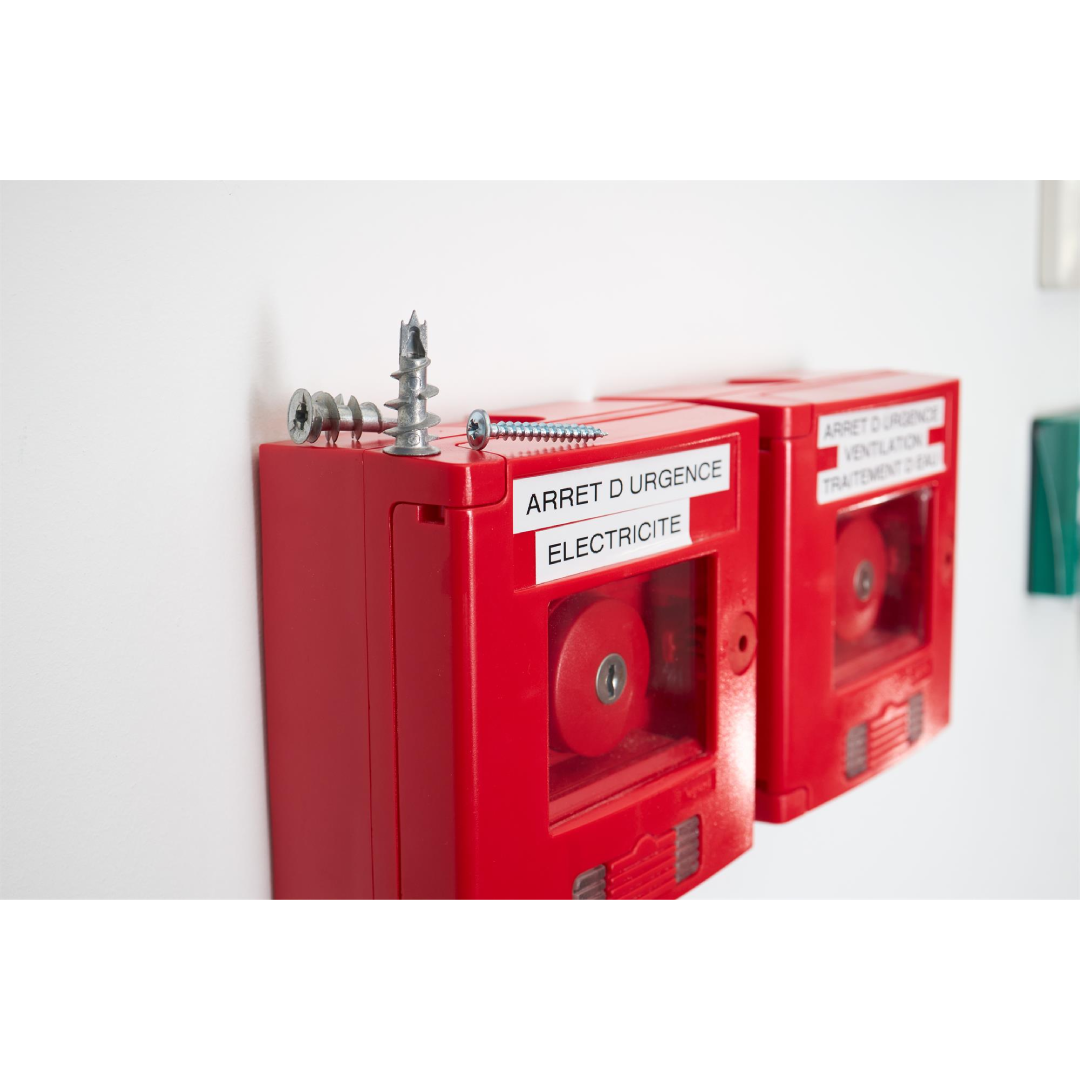

- Fastening electrical accessories (switches, sockets).
- Hanging pictures, light shelves, and cable channels.
- Fastening sanitary accessories and decorations to dry walls.

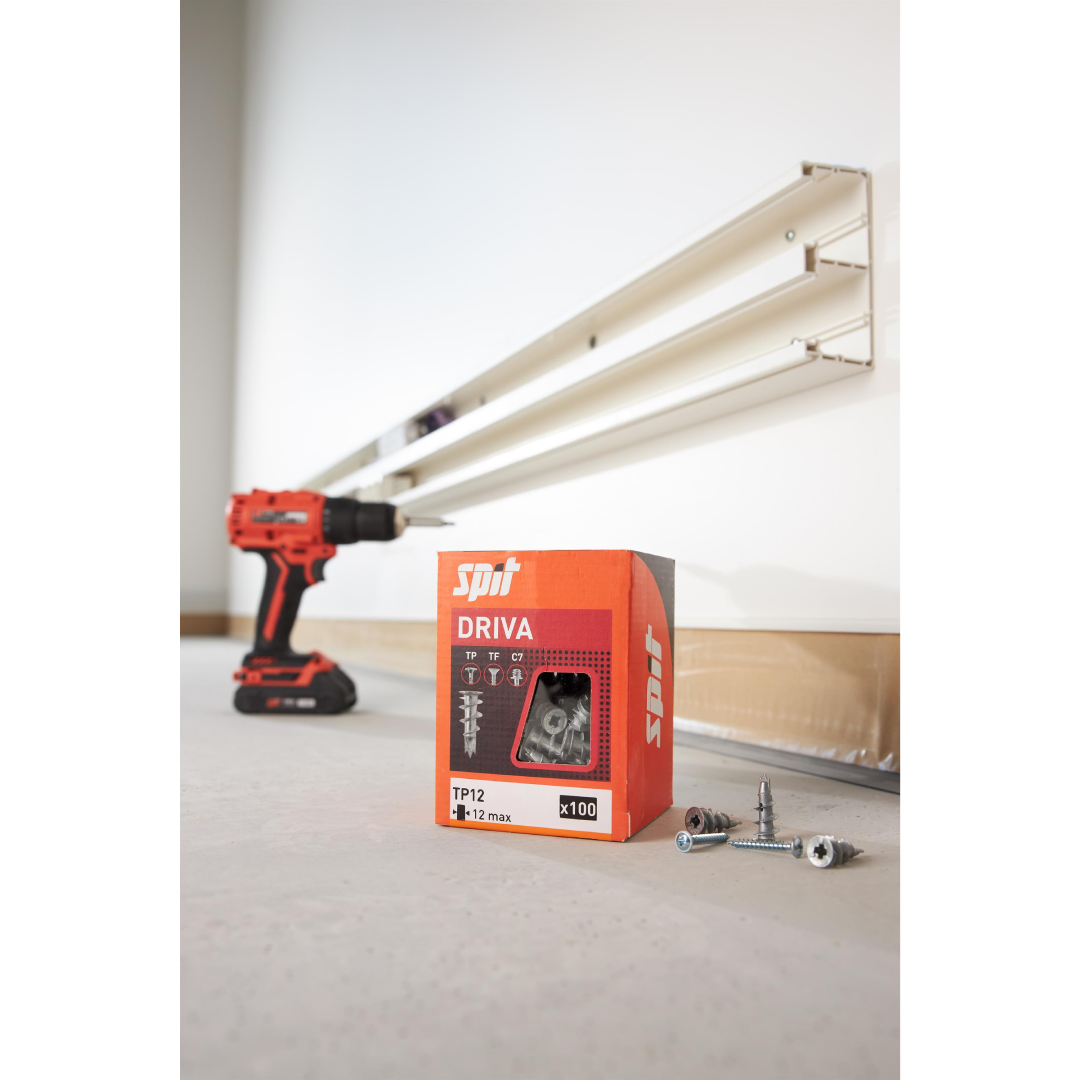

Package Contents:

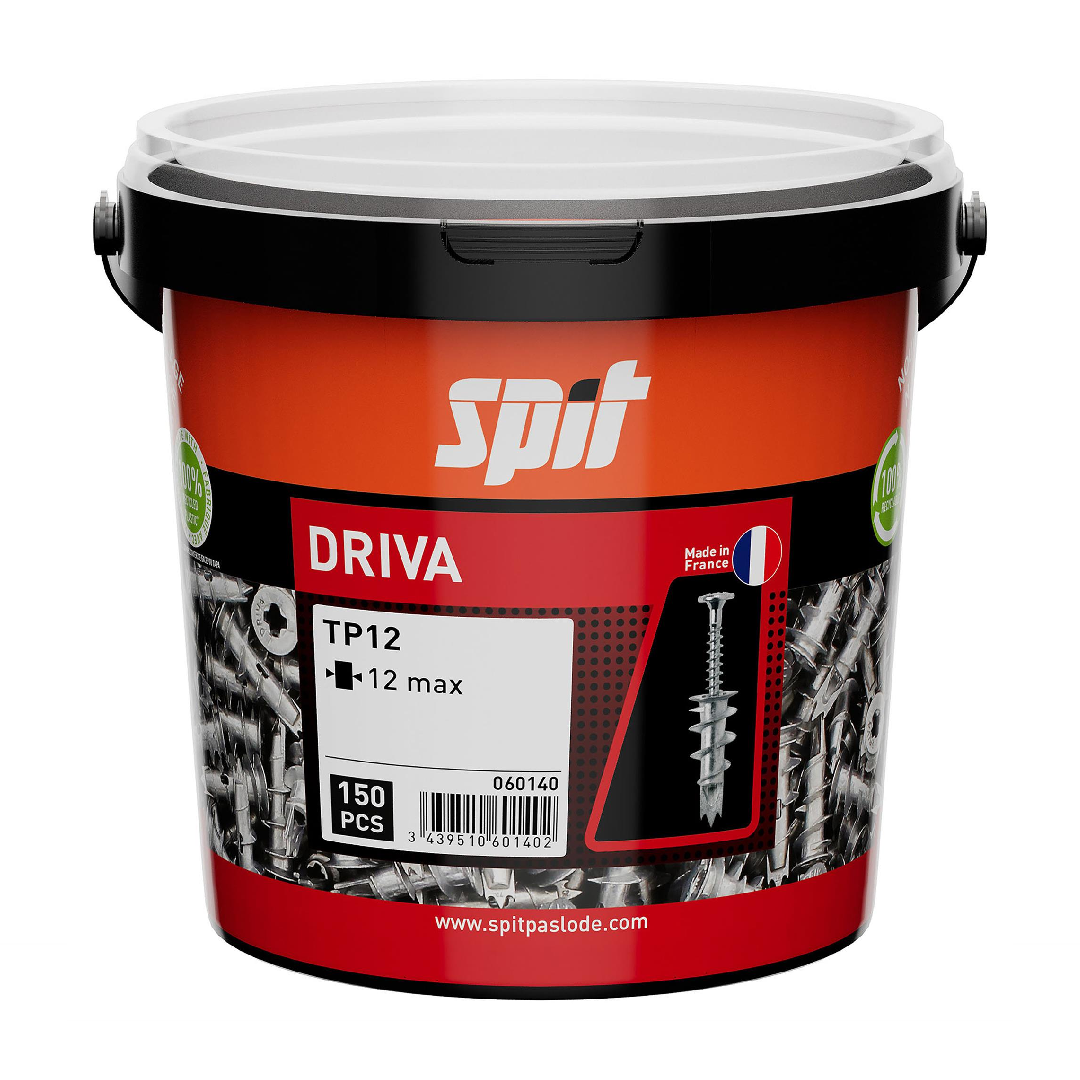

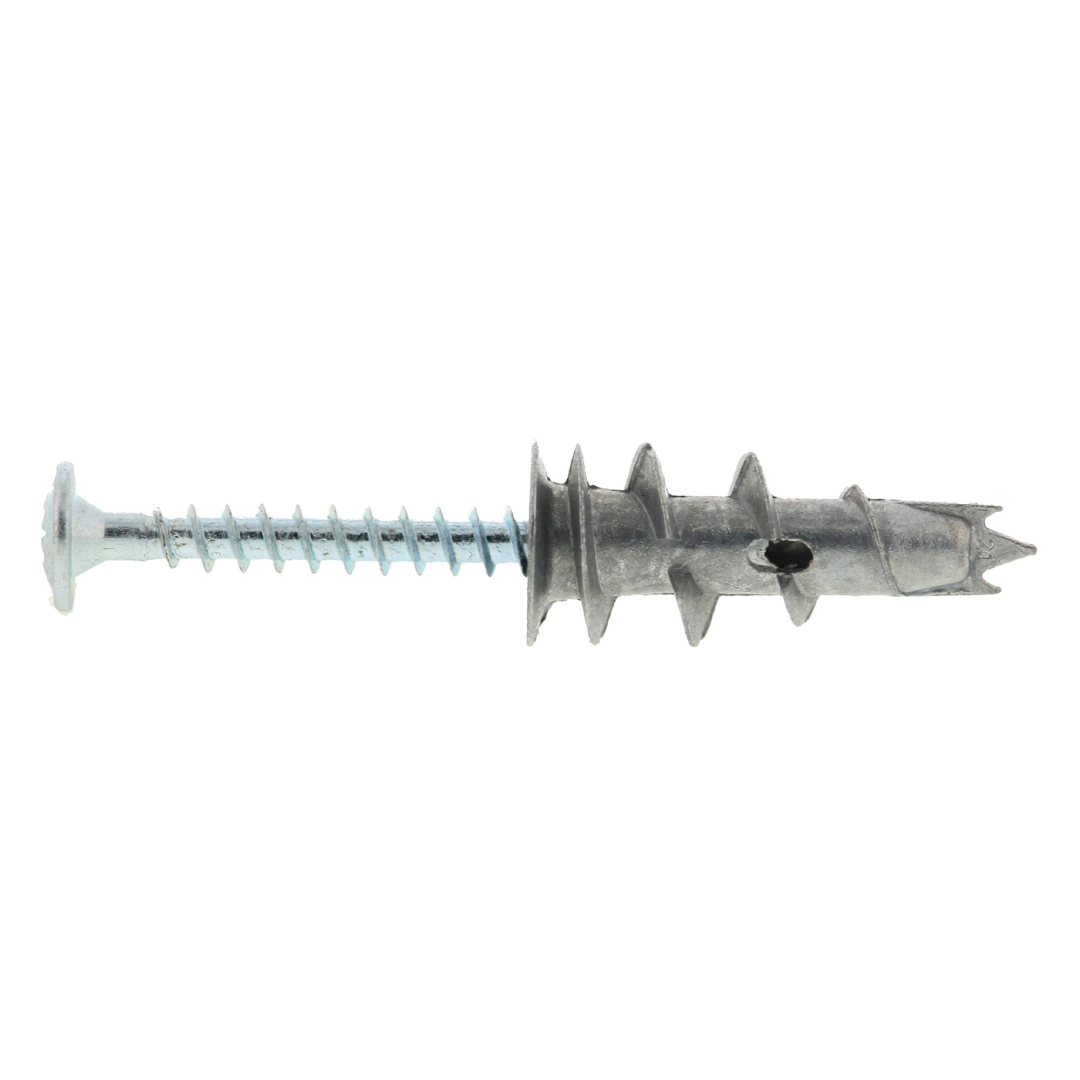

- Cardboard box containing 100 anchors with their respective screws (screw length 35 mm).
Technical Tip: For best results in plasterboard, it is recommended to use a hand screwdriver during the final moments of installation to avoid over-tightening.
