Description

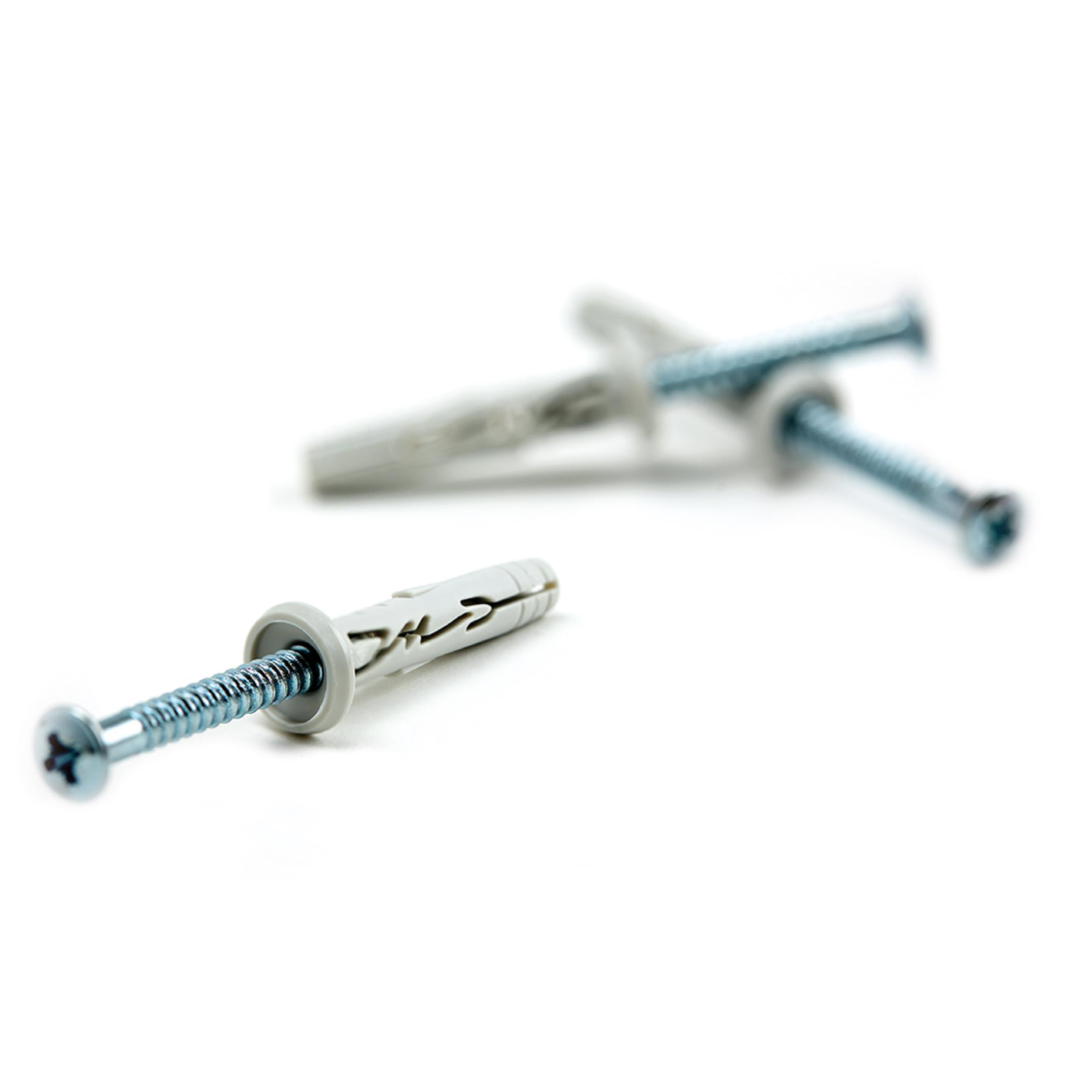

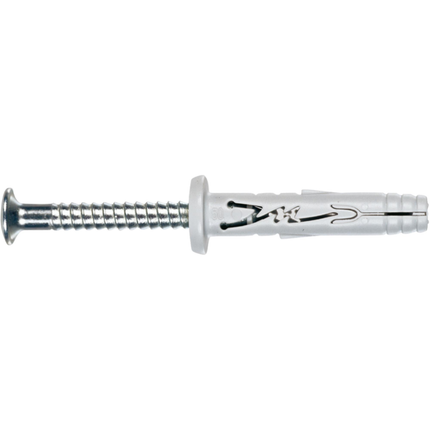

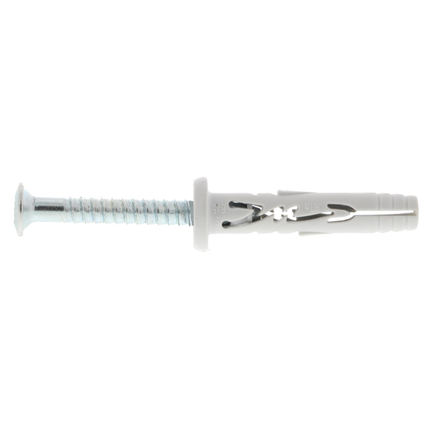

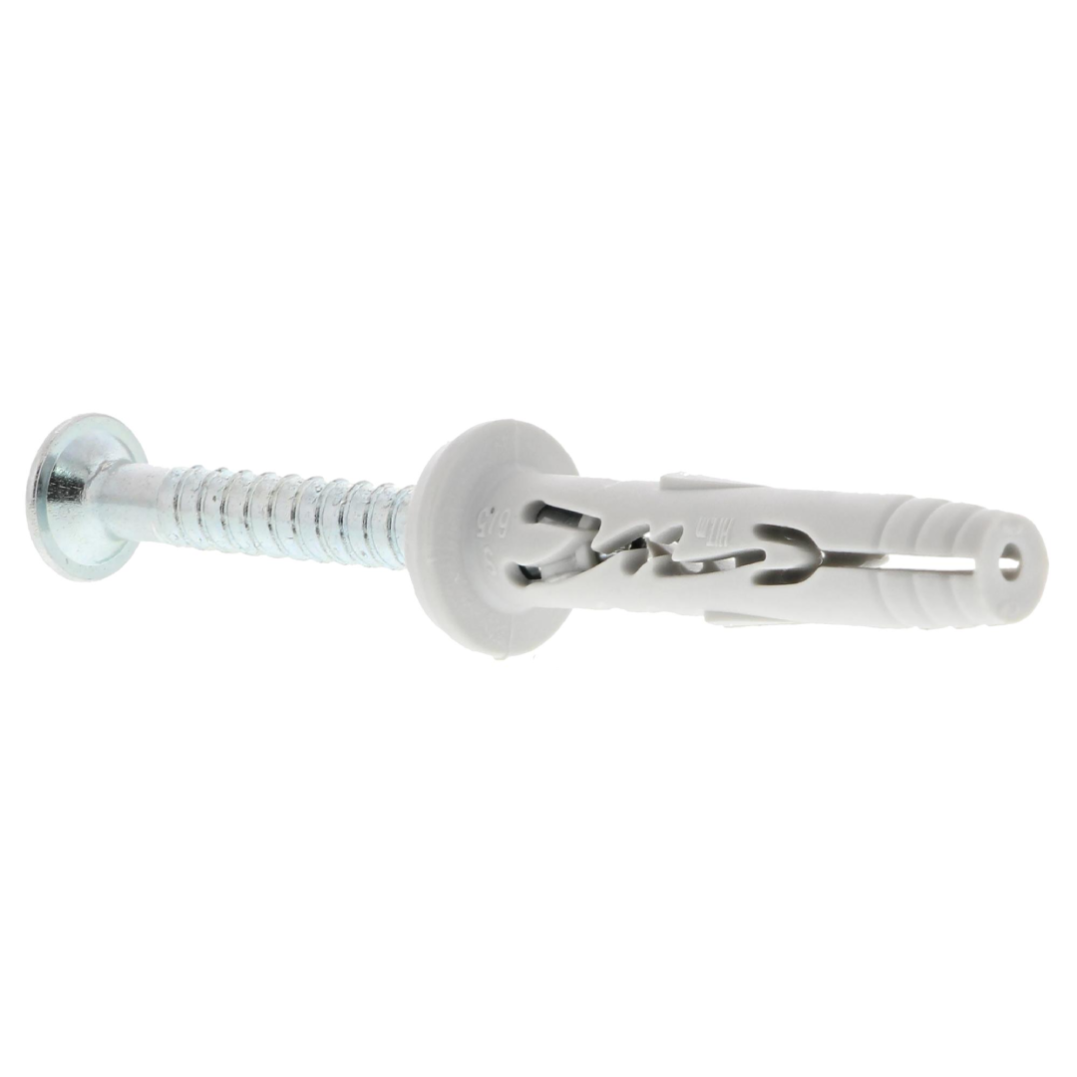

HIT-M Drive Anchor – Size 6x30/5 – is the ideal and quick solution for light-duty fixings in all types of building materials (concrete, bricks, and blocks). This anchor features a "drive-in" design instead of screwing, saving significant time on construction sites while ensuring a secure and permanent fixing thanks to its highly durable galvanized steel nail.
Professional Features and Benefits:
-

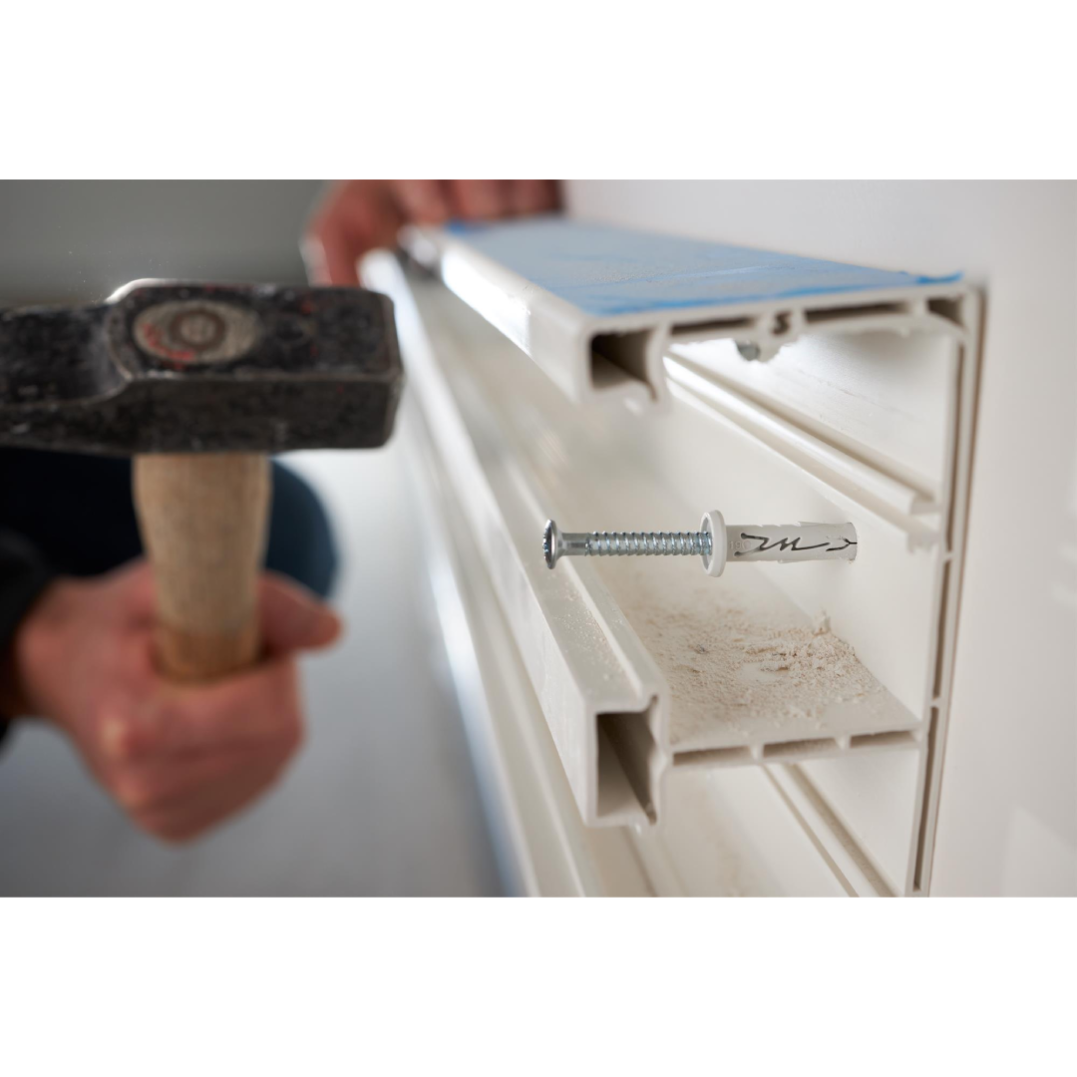

Instant Drive-in Fixing: No need for screwdrivers in the first stage; simply drill, then hammer the nail to expand the anchor and secure it instantly.
-
Flat Head: Provides a wide bearing surface and a flush finish, making it ideal for fixing thin metal parts, cable trays, and drywall angles.
-
Removable and Adjustable: Despite being a drive-in anchor, it is equipped with a (PZ2) slot that allows for future removal or adjustment using a power or hand screwdriver.
-
European Approval (ETA): Holds the European Technical Assessment (ETA-06/0032) approval, ensuring quality performance and compliance with specifications in engineering projects.
-
Versatile Material Use: Reliable performance in uncracked concrete, solid and hollow bricks, blocks, and even plasterboard.
Technical Specifications (Model 050118):
-

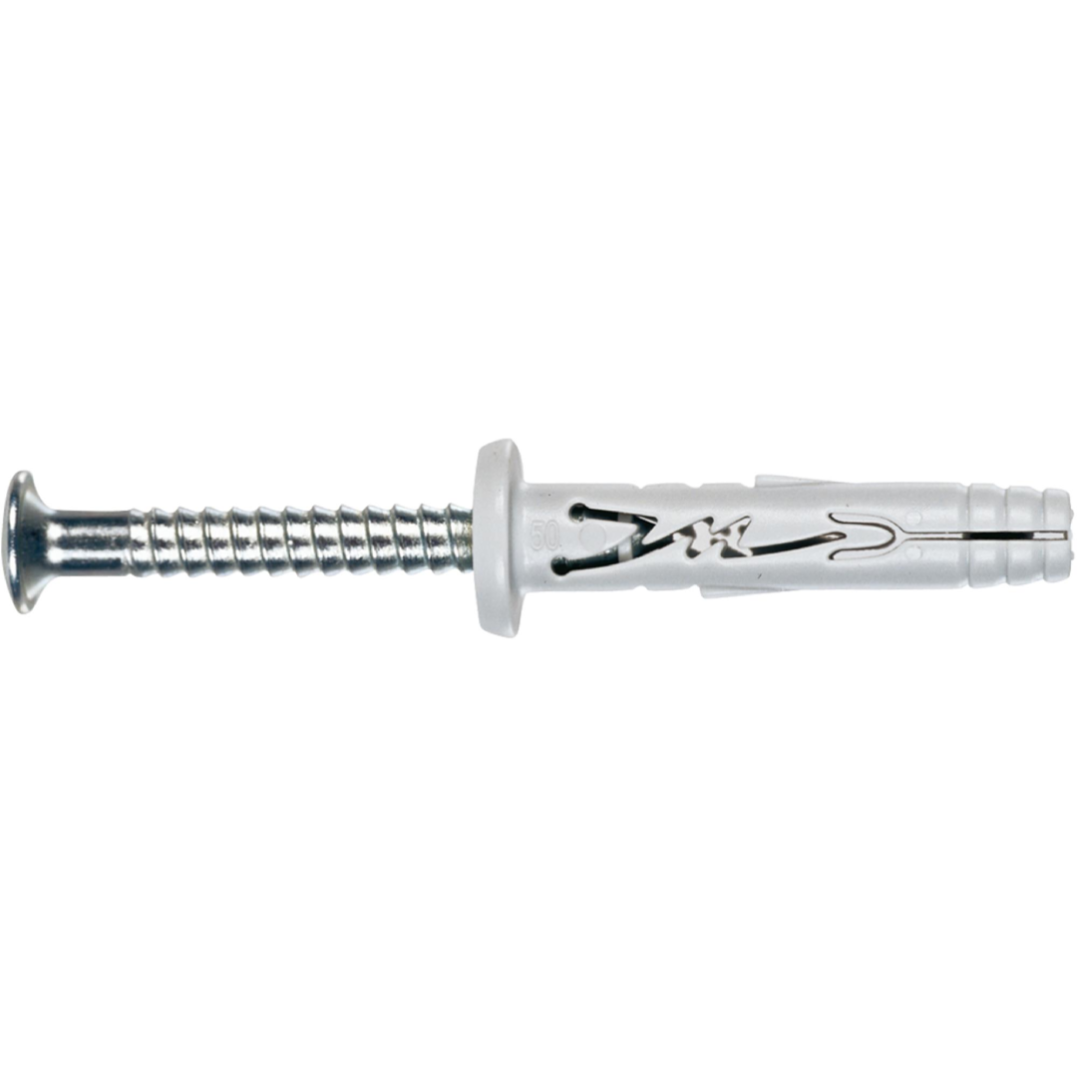

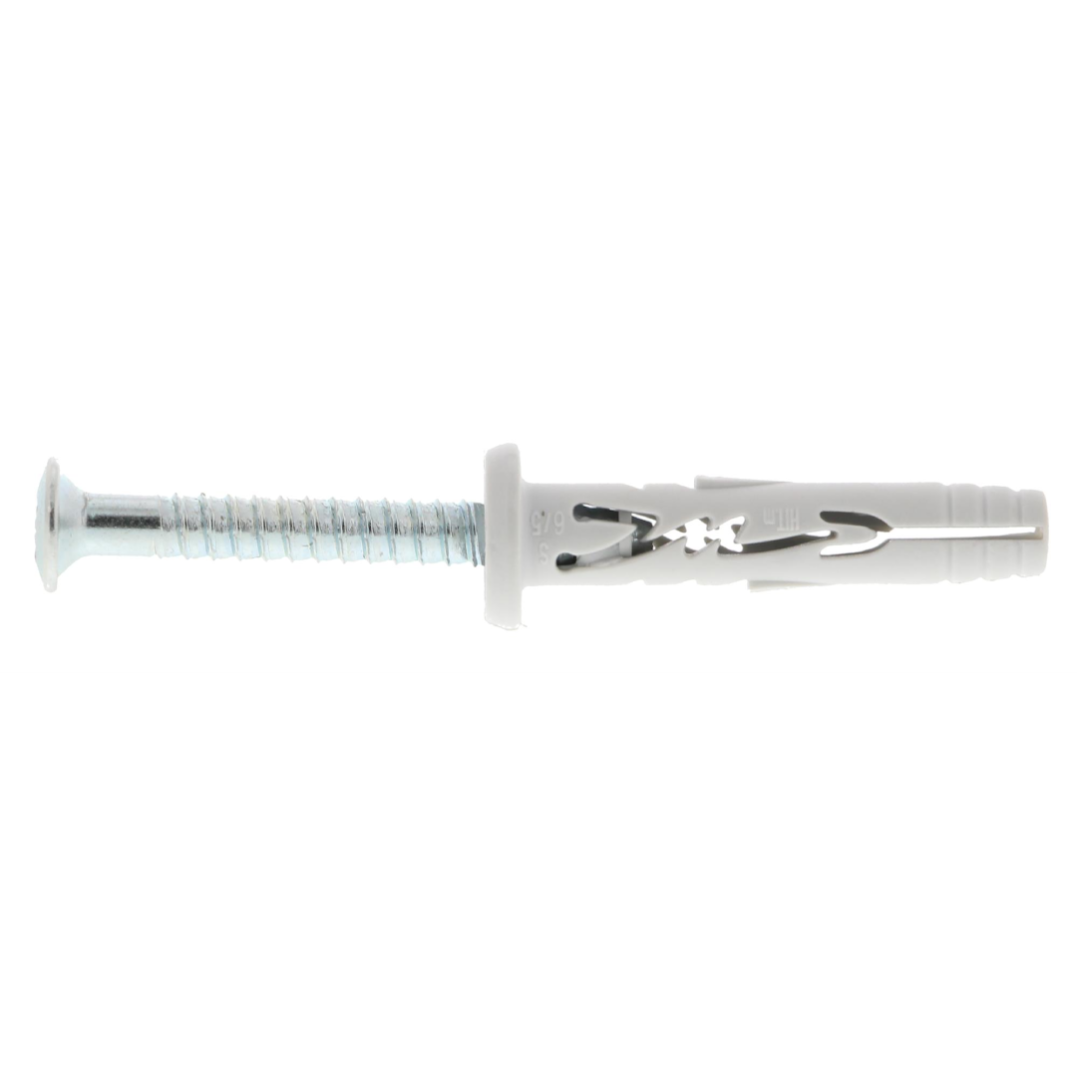

Product Name: HIT-M P 6x30/5.
-
Product Code (Eurocode): 050118.
-
Drill Diameter: 6 mm.
-
Total Anchor Length: 32 mm.
-
Maximum Fixture Thickness (tfix): 5 mm.
-
Minimum Drill Depth: 35 mm.
-

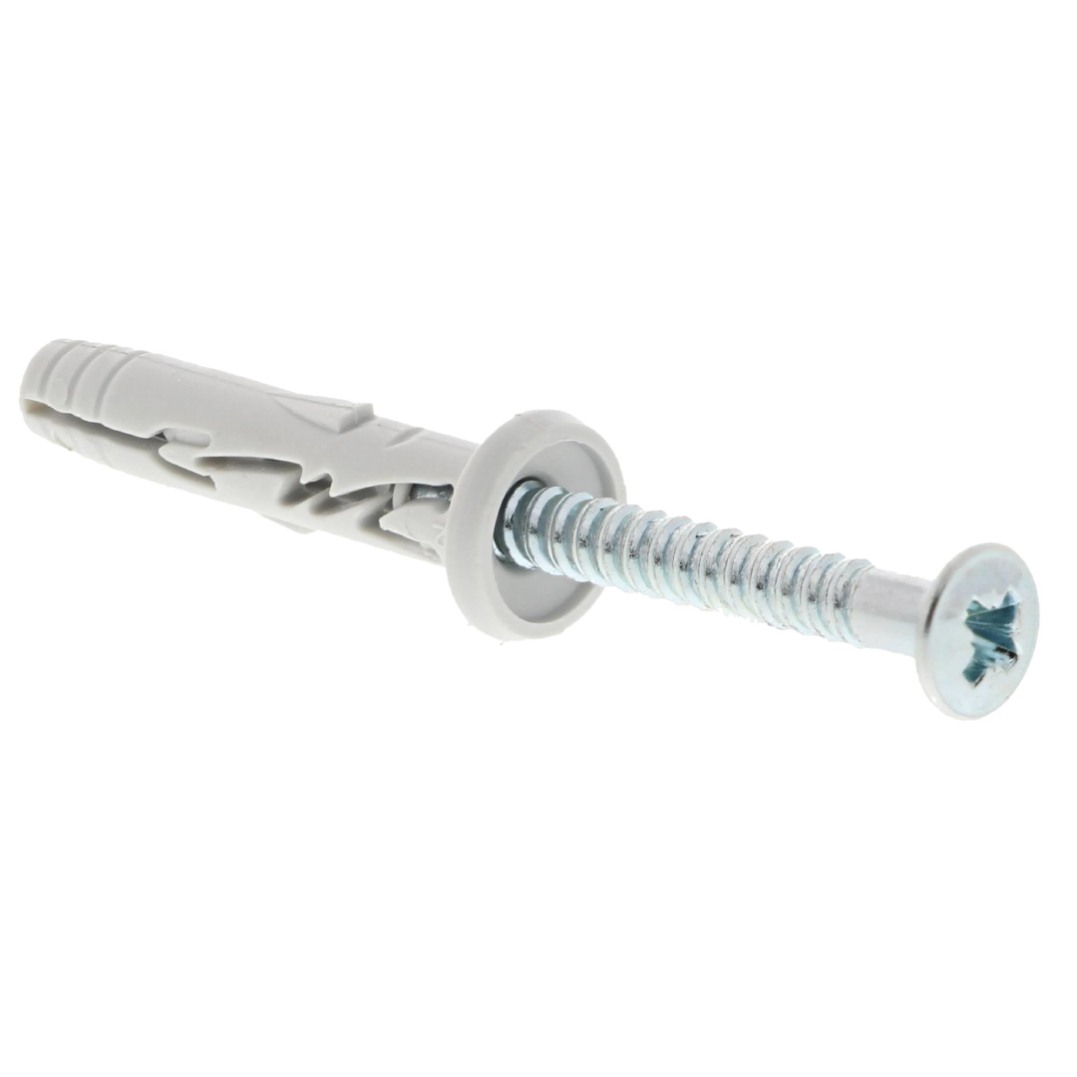

Head Type: Flat Head with 11 mm diameter.
-
Anchor Material: Zinc-Coated Steel for corrosion resistance.
-
Country of Origin: France.
Recommended Loads:
-
Concrete (C20/25): Shear strength 0.75 kN (approx. 75 kg).
-
Hollow Concrete Block: Shear strength 0.60 kN (approx. 60 kg).
-
Solid Brick: Tensile strength 0.20 kN (approx. 20 kg).
Primary Applications:

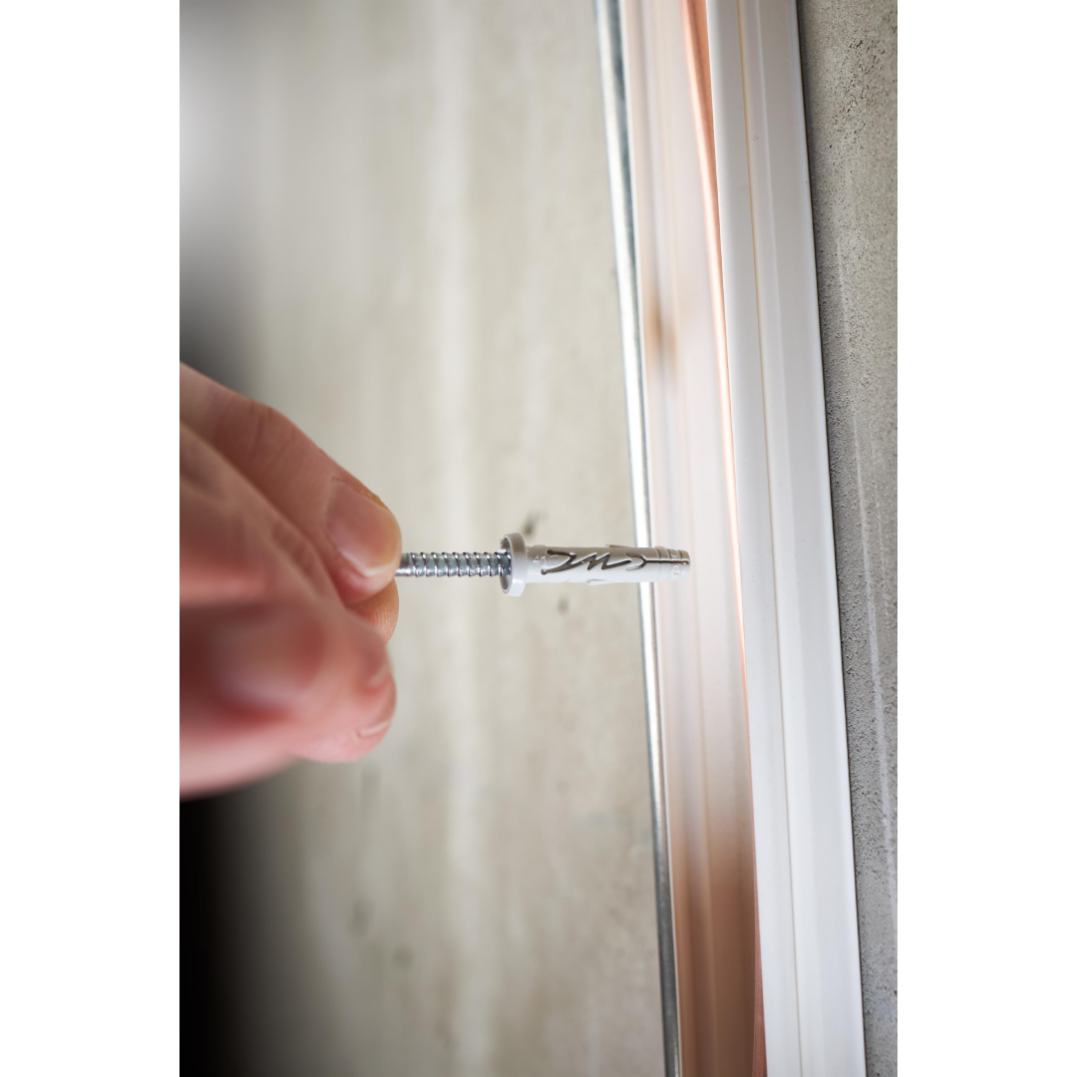

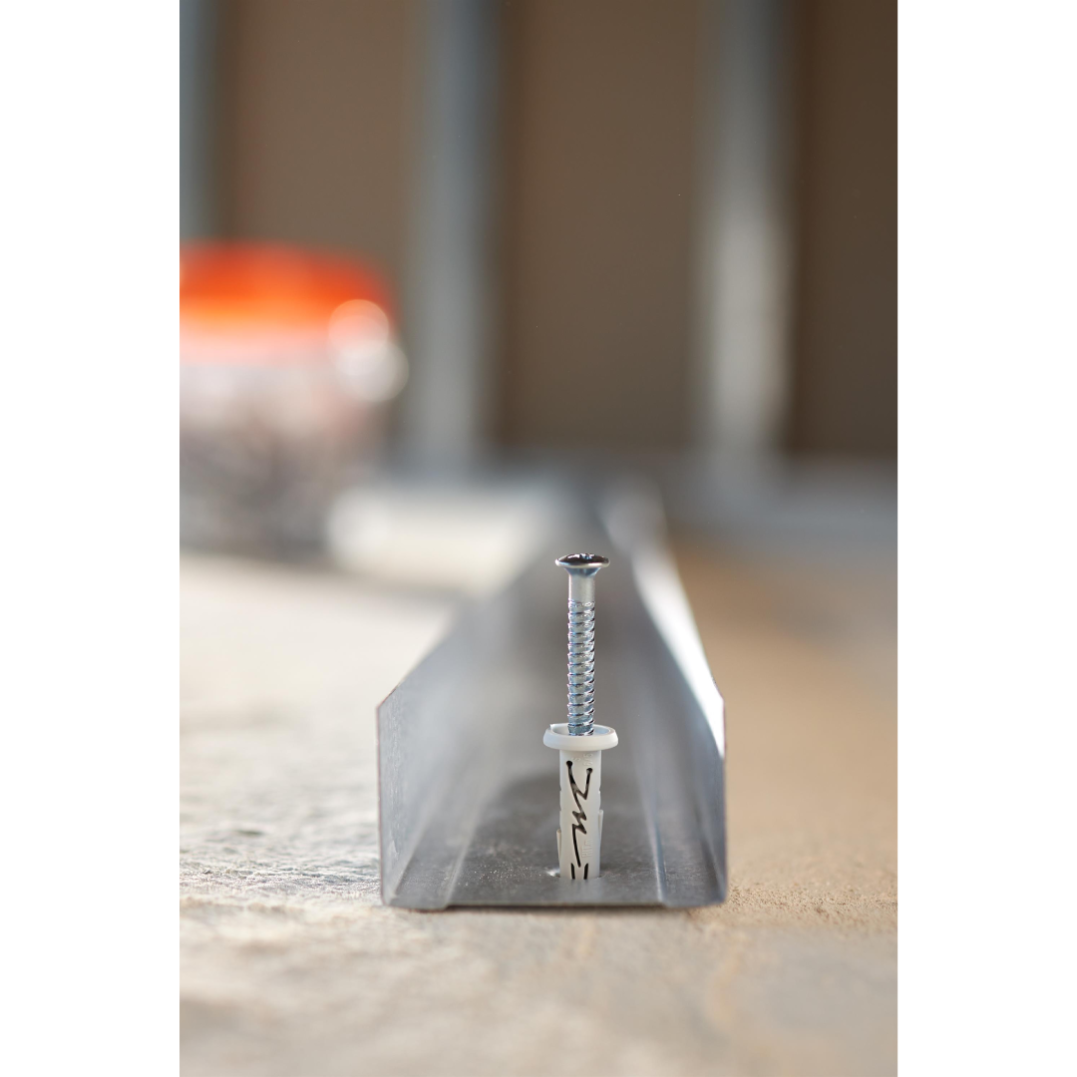

- Fixing metal wall tracks and drywall angles.

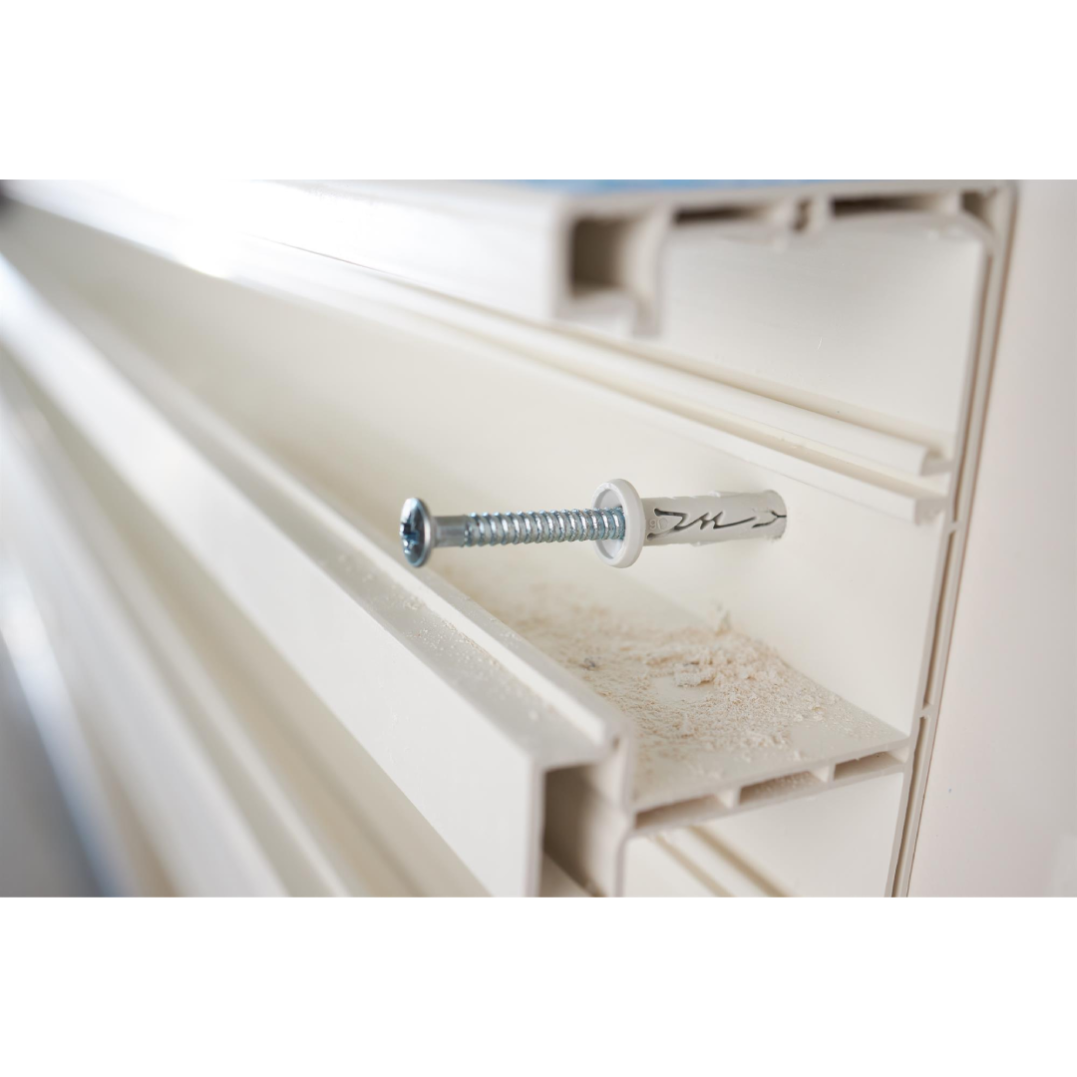

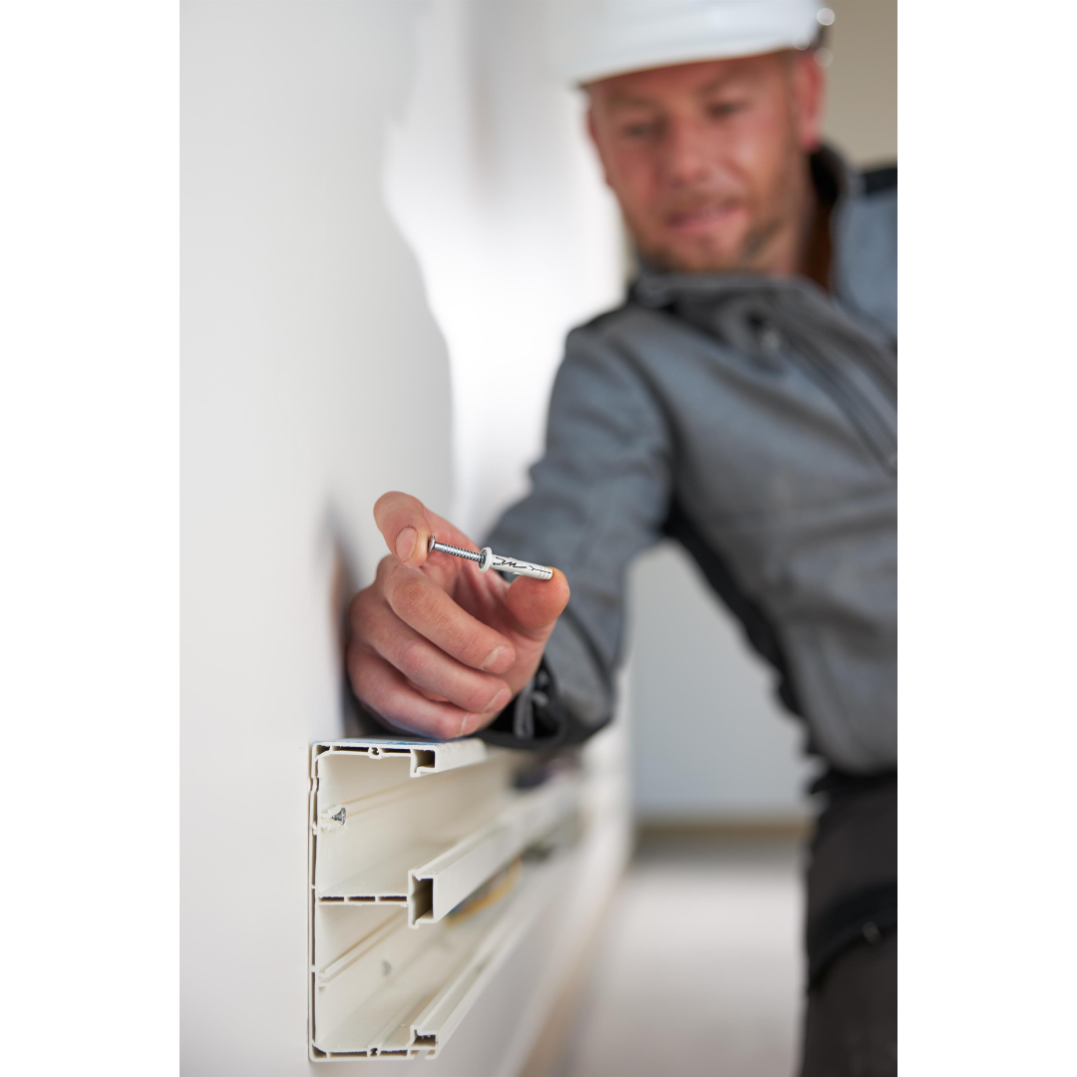

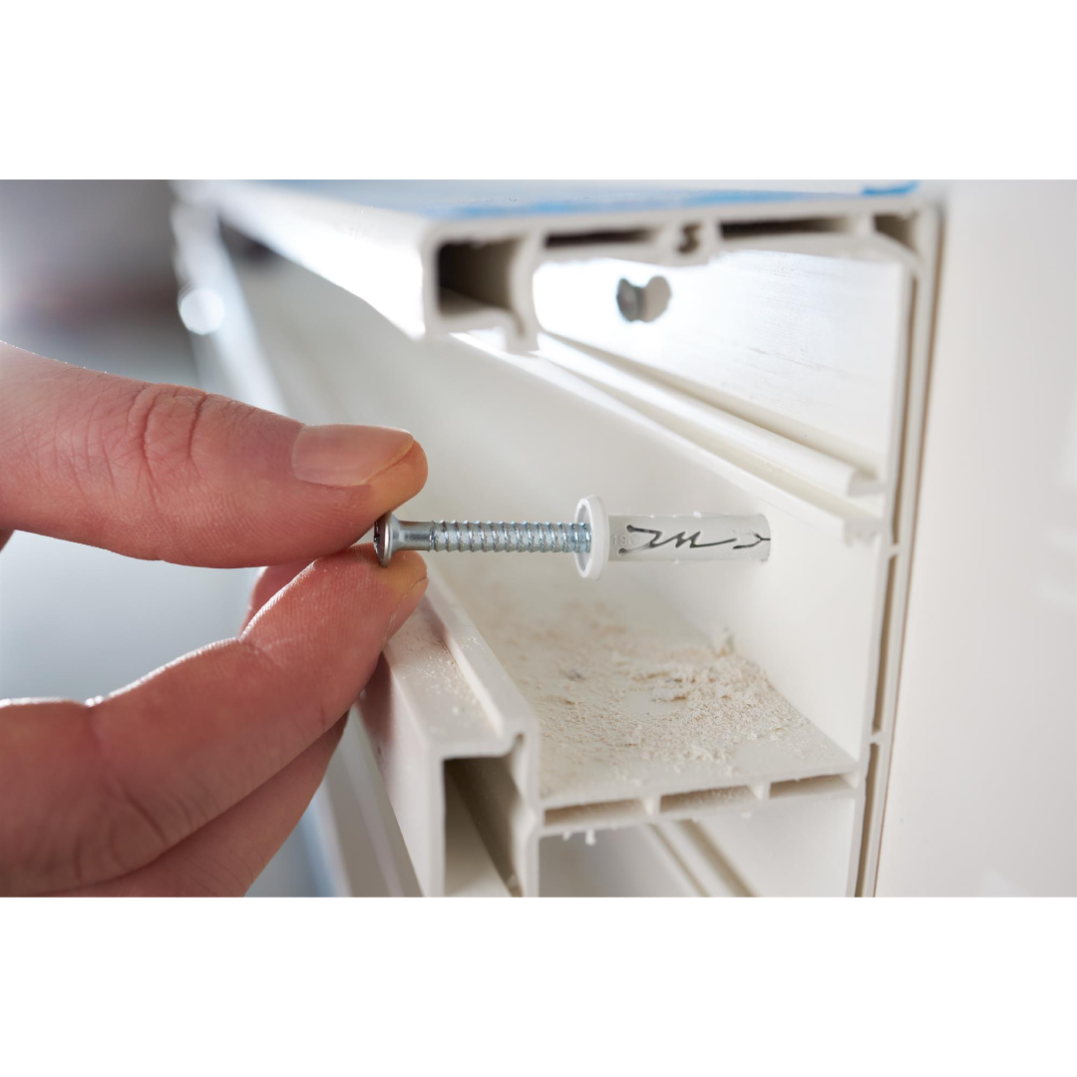

- Installing electrical cable trunking and plastic clips.
- Securing signs and thin metal parts to ceilings and walls.
Box Contents:

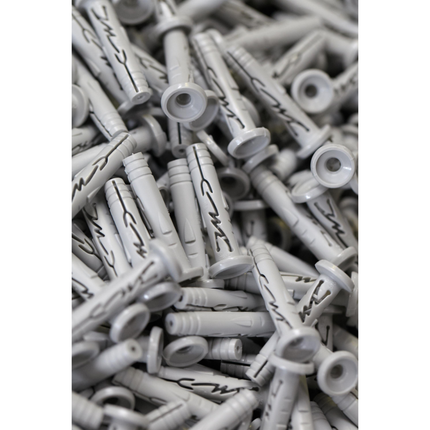

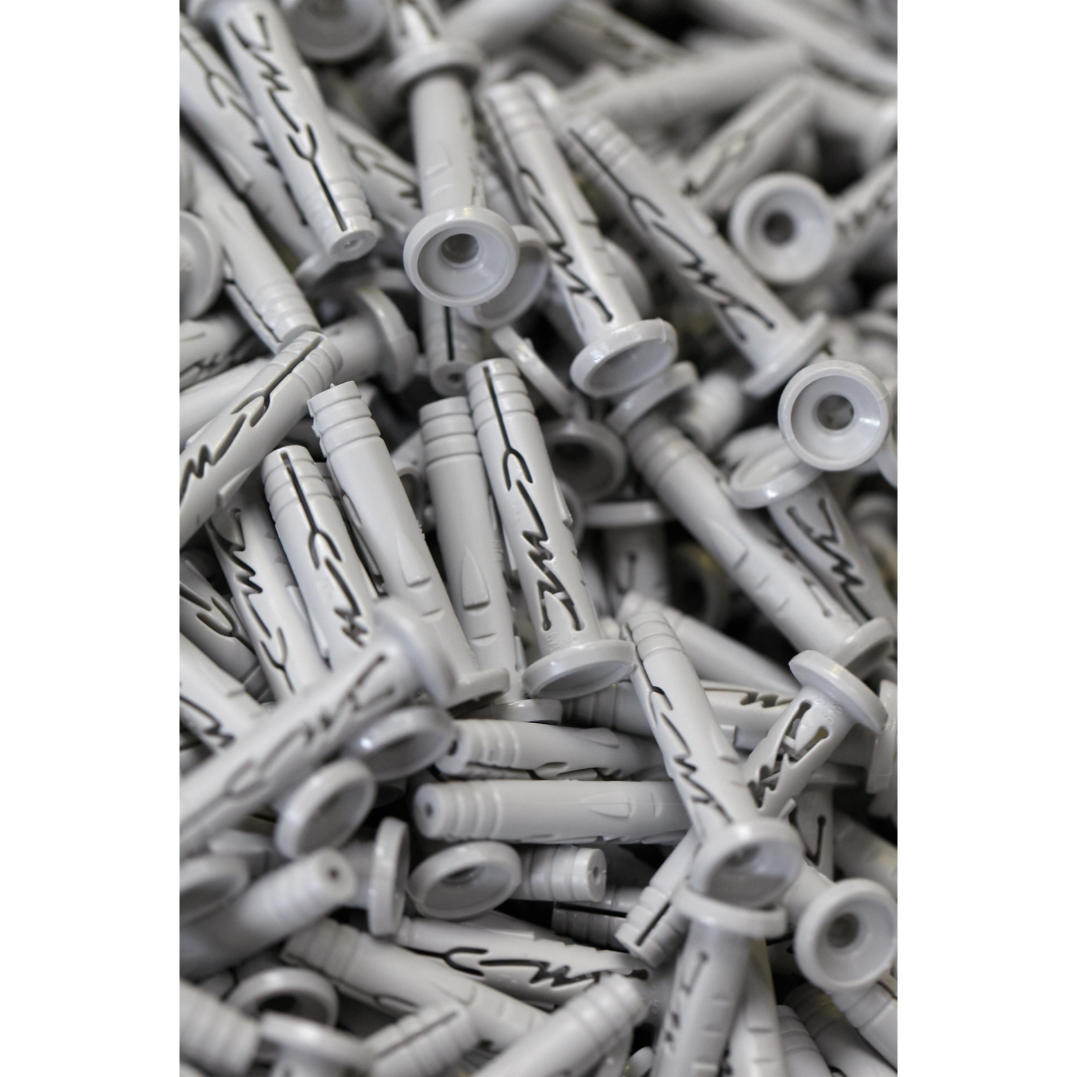

- Cardboard box containing 200 HIT-M drive anchors (plug with nail).
Technical Tip: For optimal expansion of the patented M-slot, ensure the drilled hole is free of dust before inserting the anchor.
